คุณสมบัติ / Specifications
Sensor Technology: Ultrasonic
Thread Size: M8 x 1
Body Style: Block
Output Type: PNP-NO
Detection Range: 0 → 250 mm
Terminal Type: M8 – 4 Pin
Supply Voltage: 20 → 30 V dc
IP Rating: IP67
Length: 12mm
Width: 40mm
Switching Frequency: 10 Hz
Depth: 23mm
Maximum DC Voltage: 30V
Switching Current: 200 mA
Housing Material: Polycarbonate
Short Circuit Overload Protection: Yes
-20%Sold out
สินค้าในกลุ่มนี้ทั้งหมด
NBN3-8GM25-E2-V3, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M8 x 1, 3 mm Detection, PNP Output, 10 → 30 V dc, IP67 ฿5,307.00 Original price was: ฿5,307.00.฿4,246.00Current price is: ฿4,246.00. รวมภาษีมูลค่าเพิ่มแล้ว
LFL2-BK-U-PUR5-EMS, Pepperl + Fuchs Horizontal Polypropylene Float Switch, Float, 5m Cable, Direct Load ฿5,486.00 Original price was: ฿5,486.00.฿4,389.00Current price is: ฿4,389.00. รวมภาษีมูลค่าเพิ่มแล้ว
UBR250-F77-E2-V31, Pepperl + Fuchs Ultrasonic Block-Style Proximity Sensor, M8 x 1, 0 → 250 mm Detection, PNP Output, 20 →
รหัสสินค้า: UBR250-F77-E2-V31฿9,455.00 Original price was: ฿9,455.00.฿7,564.00Current price is: ฿7,564.00. รวมภาษีมูลค่าเพิ่มแล้ว
โปรดติดต่อเราเพื่อสั่งซื้อ
สินค้าหมดแล้ว
รายละเอียดสินค้า / Product Details

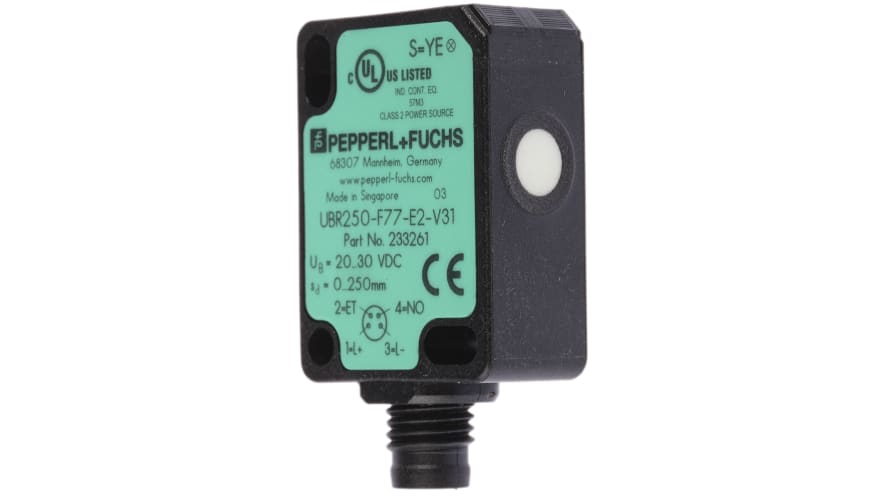

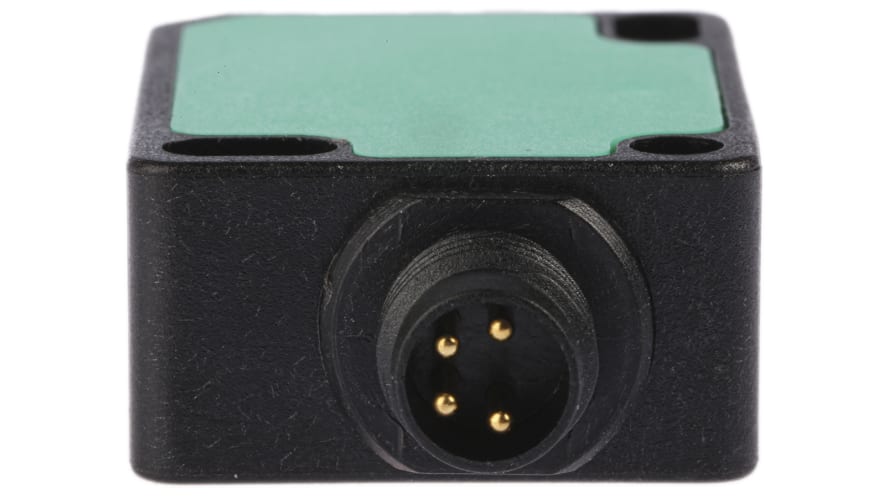

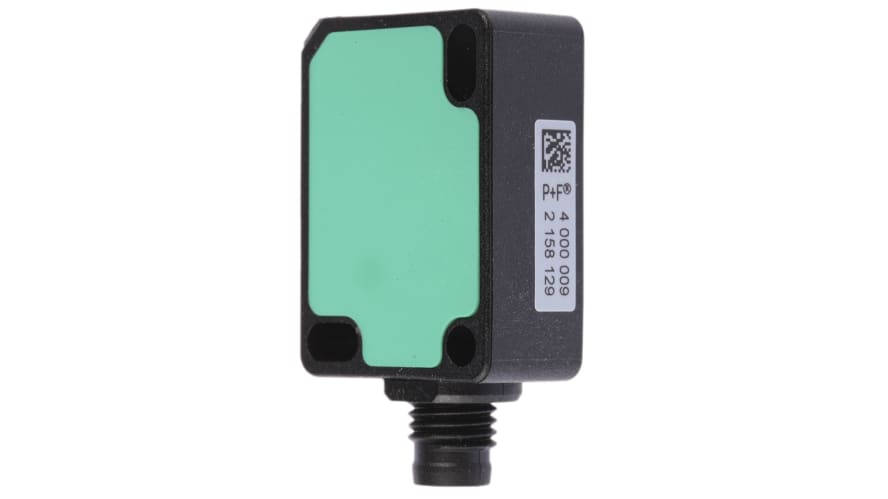

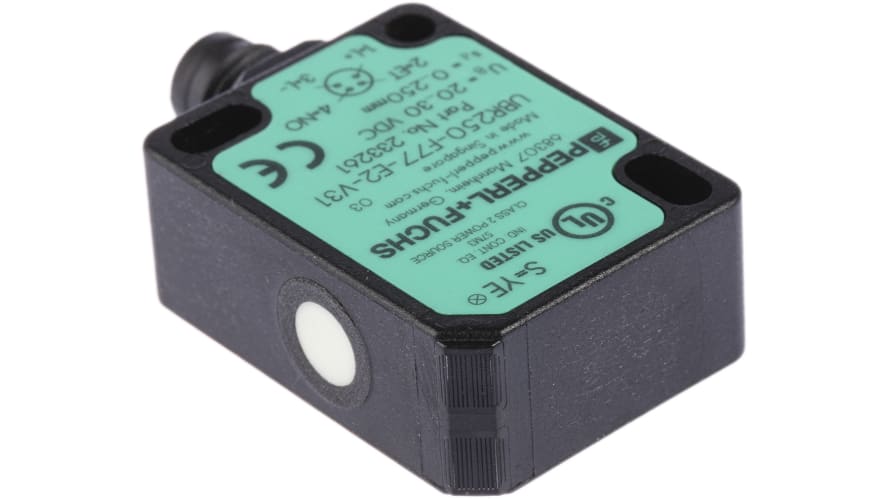

The Pepperl + Fuchs ultrasonic proximity sensor is reflex ultrasonic sensor. It has PNP output type with 4-Pin M8 Connector.
Miniature design
Highly visible LEDs for Power ON and switching state
High switching frequency
Program input
รหัสสินค้า: UBR250-F77-E2-V31 หมวดหมู่: อุปกรณ์ควบคุมไฟฟ้าอุตสาหกรรมและPLC
