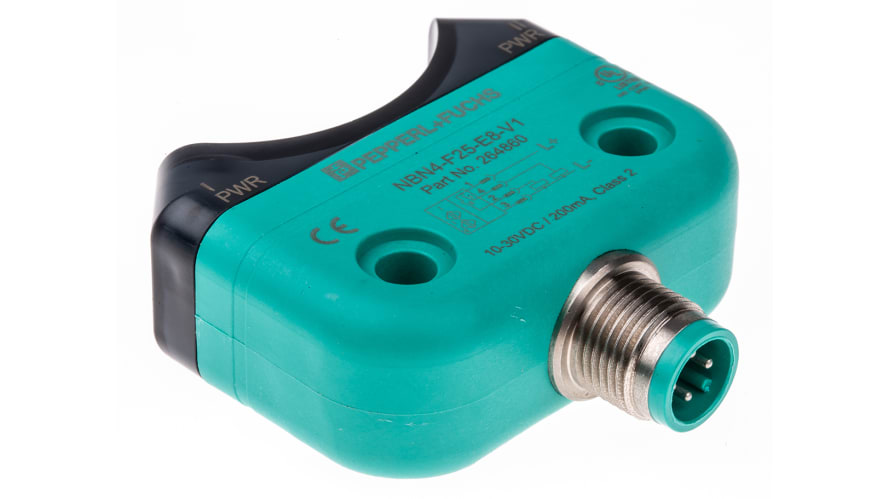

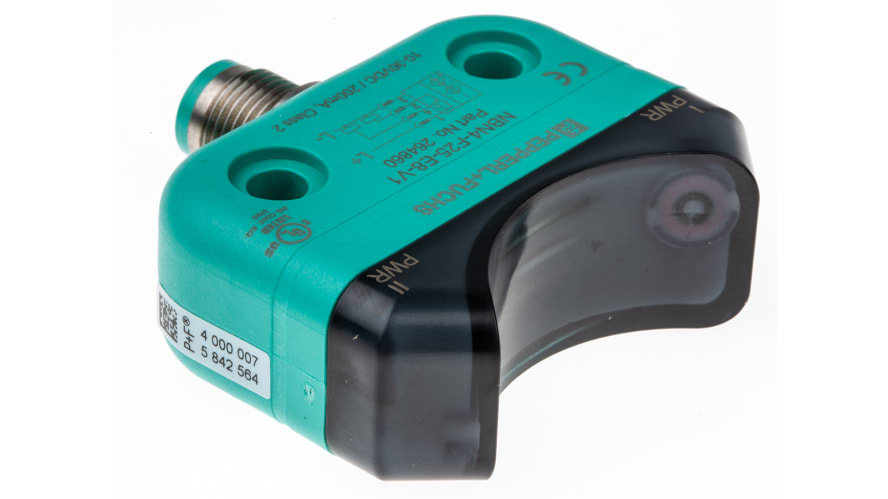

NBN4-F25-E8-V1, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 4 mm Detection, PNP Output, 10 → 30 V dc, IP67 – Model: NBN4-F25-E8-

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: PNP Detection Range: 4 mm Terminal Type: 4-Pin M12 Connector IP Rating: IP67 Supply Voltage: 10 → 30 V dc Length: 52mm Depth: 20mm Maximum DC Voltage: 30V Mounting Type: Flush Switching Current: 200 mA Housing Material: PBT Maximum Switching Frequency: 1kHz Shielding: Shielded Maximum Operating Temperature: +70°C Minimum Operating Temperature: -25°C Short Circuit Overload Protection: Yes Reverse Polarity Protection: Yes Standards Met: CCC, cCSAus Listed, CE, cULus Listed, EN 60947-5-2: 2007, IEC 60947-5-2: 2007
