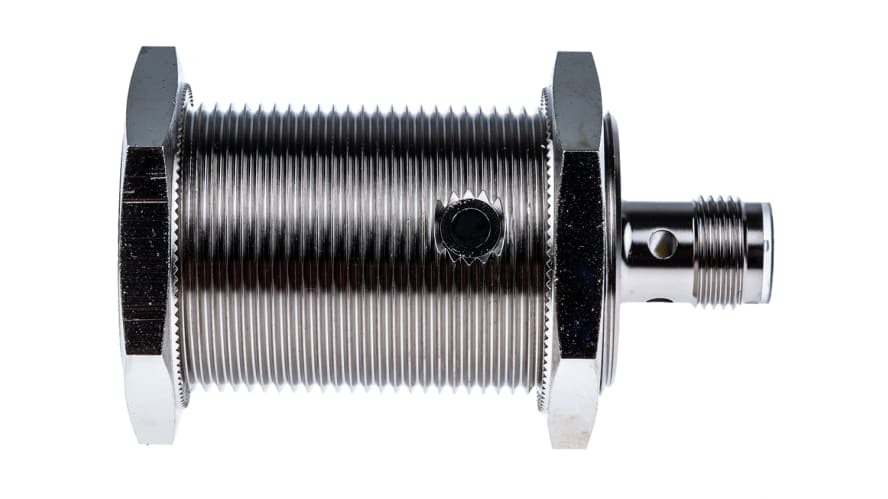

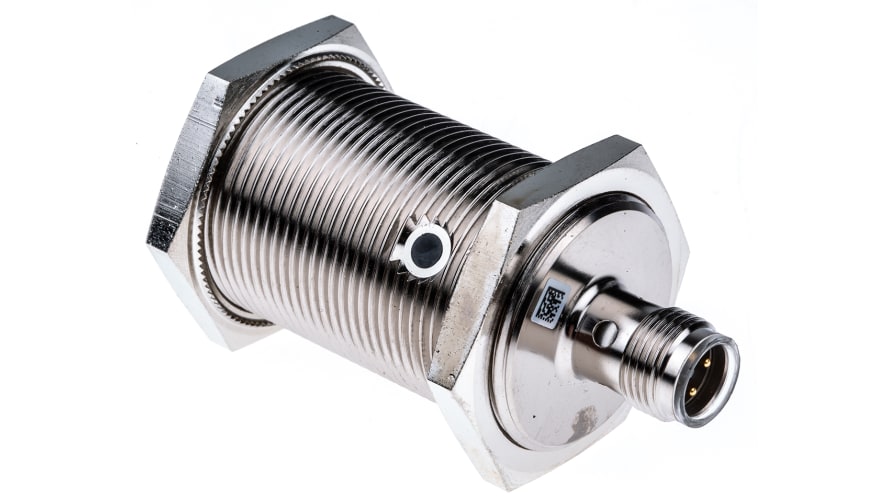

NBB15-30GM50-E2-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 15 mm Detection, PNP Output, 5 → 36 V dc, – Model: N

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M30 x 1.5 Output Type: PNP Detection Range: 15 mm Terminal Type: 4-Pin M12 Connector Supply Voltage: 5 → 36 V dc IP Rating: IP68 Length: 65mm Maximum DC Voltage: 36V Mounting Type: Flush Switching Current: 200 mA Housing Material: Brass, White Bronze Coated Maximum Switching Frequency: 550Hz Maximum Operating Temperature: +85°C Reverse Polarity Protection: Yes Minimum Operating Temperature: -40°C Standards Met: CCC Marking, cCSAus Listed, CE, cULus Listed, EN 60947-5-2: 2007, IEC 60947-5-2: 2007 Short Circuit Overload Protection: Yes
