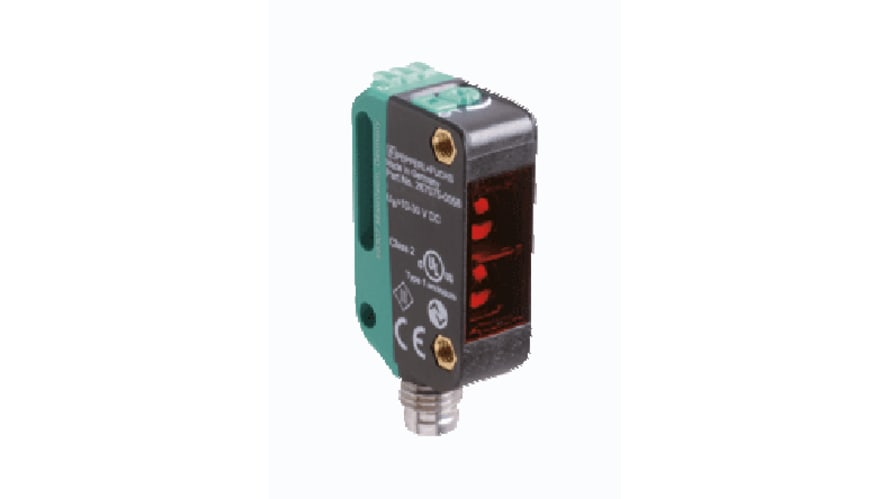

OBR12M-R100-2EP-IO-V31-L, Pepperl + Fuchs Retroreflective Photoelectric Sensor, Block Sensor, 0 → 12 m Detection Range IO-LINK – Model: OBR1

คุณสมบัติ / Specifications Sensor Style: Block Detection Type: Retroreflective Detection Range: 0 → 12 m Output Type: NPN/PNP Electrical Connection: M8 4 Pin Connector Maximum DC Voltage: 30V Communication Protocol: IO-LINK Terminal Type: 4 Pin Connector Light Source: Laser Light IP Rating: IP67, IP69, IP69K Maximum Current: 100 mA Response Time: 250 μs Interface: IO-Link Housing Material: PC Series: OBR12M Maximum Operating Temperature: +60°C Minimum Operating Temperature: -40°C Mounting Type: Panel Mount Standards Met: CE, cULus, E 87056, EN 60825-1:2007, EN 60947-5-2:2007, EN 61131-9:2013, FDA, IEC 60825-1:2007, IEC 60947-5-2:2007, IEC 61131-9:2013, UL 60947-5-2: 2014
