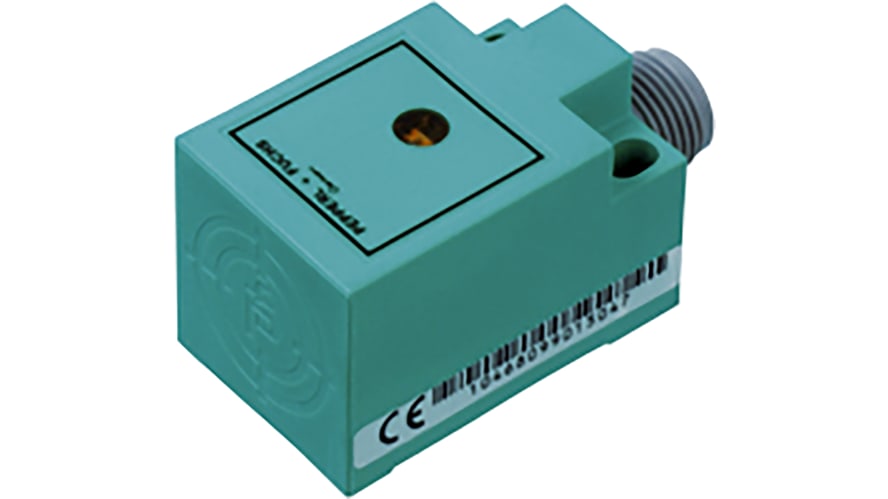

NBN10-F10-E2-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, 10 mm Detection, PNP Output, 10 → 30 V dc, IP67 – Model: NBN10-F10

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Output Type: PNP Detection Range: 10 mm Terminal Type: 4-Pin M12 Connector Supply Voltage: 10 → 30 V dc IP Rating: IP67 Length: 25mm Width: 38.5mm Depth: 25.5mm Maximum DC Voltage: 30V Mounting Type: Non-Flush Switching Current: 100 mA Maximum Switching Frequency: 500Hz Housing Material: PBT Maximum Operating Temperature: +70°C Standards Met: CCC Certified, CE Certified, cULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1 Reverse Polarity Protection: Yes Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C
