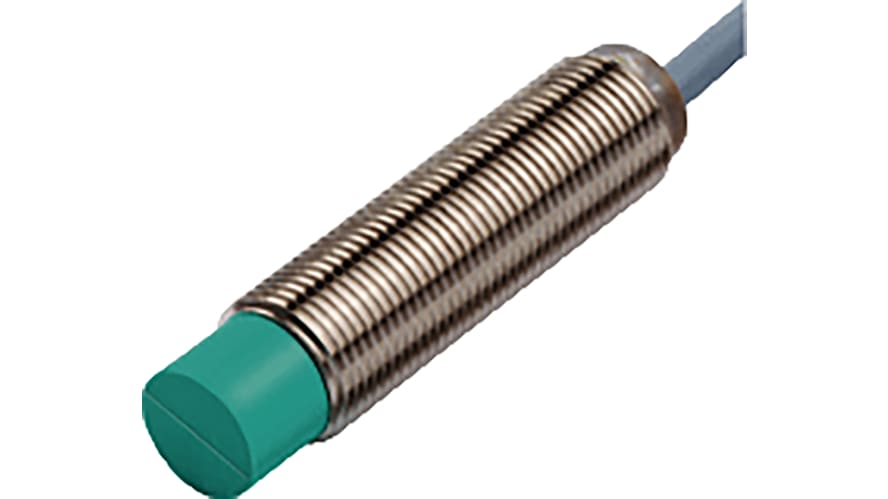

NBN8-12GM50-E2, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, PNP Output, 5 → 36 V dc, IP68 – Model: NBN

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M12 x 1 Output Type: PNP Detection Range: 8 mm Terminal Type: Cable IP Rating: IP68 Supply Voltage: 5 → 36 V dc Length: 50mm Maximum DC Voltage: 36V Mounting Type: Non-Flush Switching Current: 200 mA Maximum Operating Temperature: +85°C Maximum Switching Frequency: 1650Hz Housing Material: Brass, White Bronze Coated Minimum Operating Temperature: -40°C Short Circuit Overload Protection: Yes Standards Met: CCC Certified, cCSAus Listed, CE Certified, cULus Listed, EN 60947-5-2, IEC 60947-5-2 Reverse Polarity Protection: Yes
