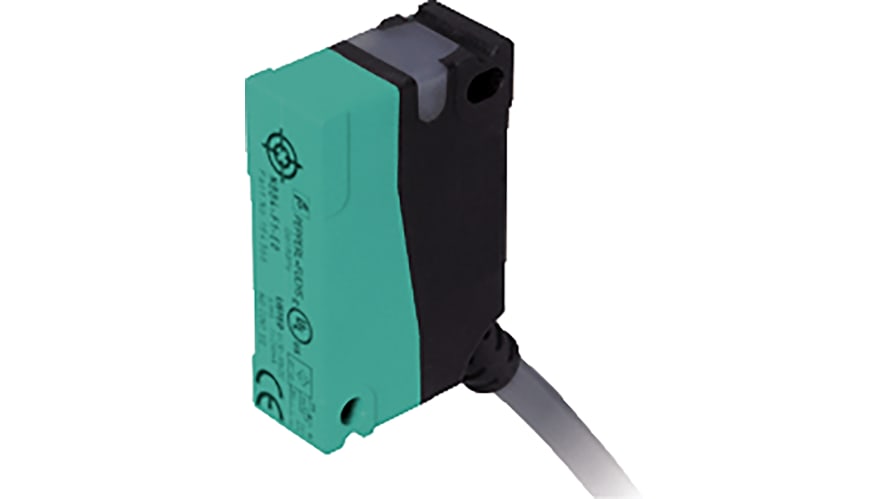

NBN8-F1-E2, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 8 mm Detection, PNP Output, 10 → 30 V dc, IP67 – Model: NBN8-F1-E2

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: PNP Detection Range: 8 mm Terminal Type: Cable Supply Voltage: 10 → 30 V dc IP Rating: IP67 Length: 12mm Width: 26mm Depth: 40mm Maximum DC Voltage: 30V Mounting Type: Non-Flush Switching Current: 250 mA Maximum Switching Frequency: 1.4kHz Maximum Operating Temperature: +70°C Housing Material: Polyamide Short Circuit Overload Protection: Yes Standards Met: CCC Certified, cCSAus Listed, CE Certified, cULus Listed, EN 60947-5-2, IEC 60947-5-2 Minimum Operating Temperature: -25°C Reverse Polarity Protection: Yes
