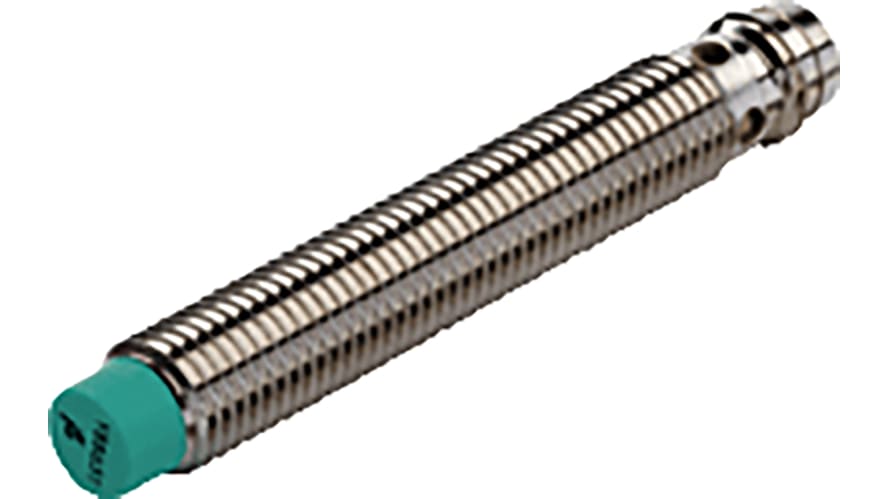

NEN6-8GM40-E2-V3, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M8 x 1, 6 mm Detection, PNP Output, 5 → 30 V dc, IP67 – Model: NE

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M8 x 1 Output Type: PNP Detection Range: 6 mm Terminal Type: 3-Pin M8 Connector Supply Voltage: 5 → 30 V dc IP Rating: IP67 Length: 55mm Mounting Type: Non-Flush Switching Current: 100 mA Maximum Switching Frequency: 1.5kHz Maximum Operating Temperature: +85°C Housing Material: Brass Short Circuit Overload Protection: Yes Standards Met: CCC Certified, CE Certified, cULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1 Minimum Operating Temperature: -40°C Reverse Polarity Protection: Yes
