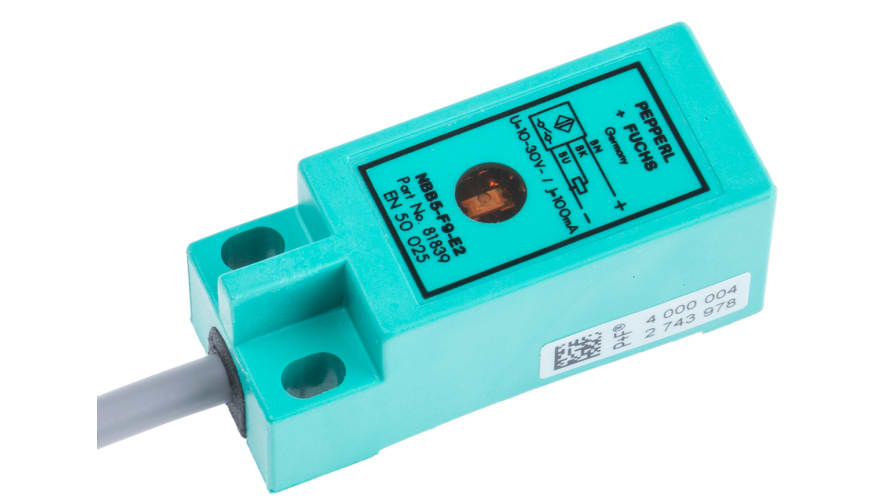

NBB5-F9-E2, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 5 mm Detection, PNP Output, 10 → 30 V dc, IP67 – Model: NBB5-F9-E2

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: PNP-NO Detection Range: 5 mm Terminal Type: Cable IP Rating: IP67 Supply Voltage: 10 → 30 V dc Length: 38.5mm Width: 16mm Depth: 16.5mm Maximum DC Voltage: 30V Mounting Type: Flush Mount Switching Current: 150 mA Maximum Switching Frequency: 500Hz Housing Material: PBT Maximum Operating Temperature: +70°C Short Circuit Overload Protection: Yes Reverse Polarity Protection: Yes Minimum Operating Temperature: -25°C
