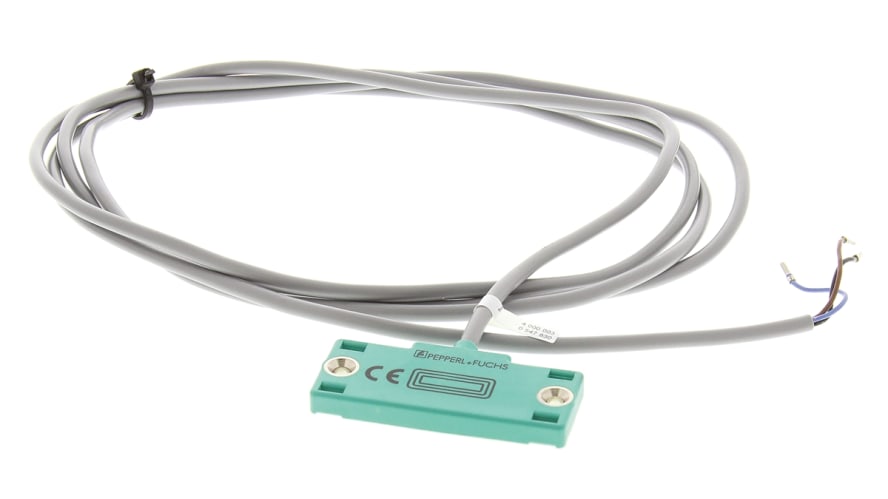

CBN5-F46-E2, Pepperl + Fuchs Capacitive Block-Style Proximity Sensor, 5 mm Detection, PNP Output, 10 → 30 V dc, IP67 – Model: CBN5-F46-E2

คุณสมบัติ / Specifications Sensor Technology: Capacitive Body Style: Block Output Type: PNP-NO Detection Range: 5 mm Terminal Type: Cable Supply Voltage: 10 → 30 V dc IP Rating: IP67 Length: 50mm Width: 20mm Switching Frequency: 0 → 10 Hz Depth: 5mm Maximum DC Voltage: 30V Switching Current: 100 mA Maximum Operating Temperature: +70°C Housing Material: PBT Reverse Polarity Protection: Yes Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C
