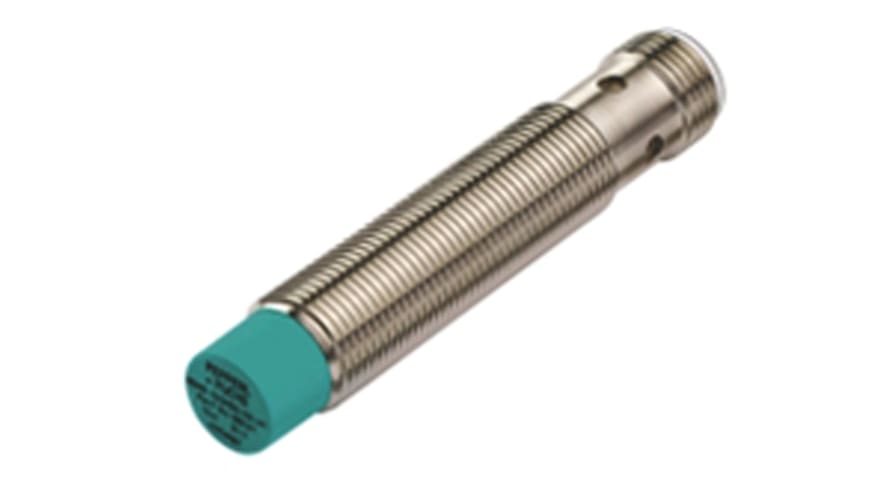

NBN4-12GM50-E0-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, NPN Output, 5 → 36 V dc, IP68 – Model:

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M12 x 1 Output Type: NPN Detection Range: 4 mm Terminal Type: 4-Pin M12 Connector Supply Voltage: 5 → 36 V dc IP Rating: IP68 Length: 65mm Maximum DC Voltage: 36V Mounting Type: Non-Flush Switching Current: 200 mA Housing Material: Brass, White Bronze Coated Maximum Operating Temperature: +85°C Maximum Switching Frequency: 2650Hz Shielding: Partial Reverse Polarity Protection: Yes Short Circuit Overload Protection: Yes Minimum Operating Temperature: -40°C
