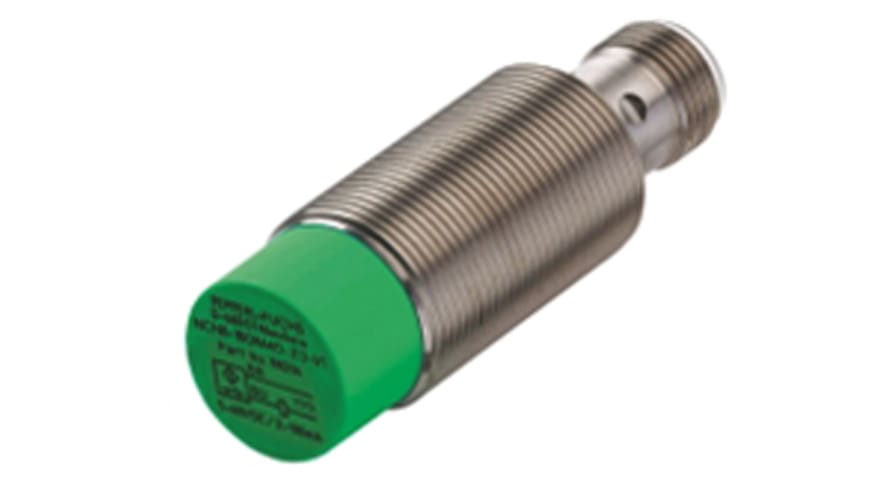

NBN8-18GM40-Z0-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, 5 → 30 V dc, IP67 – Model: NBN8-18GM40-

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M18 x 1 Detection Range: 8 mm Terminal Type: 4-Pin M12 Connector IP Rating: IP67 Supply Voltage: 5 → 30 V dc Length: 55mm Maximum DC Voltage: 60V Mounting Type: Non-Flush Switching Current: 100 mA Housing Material: Brass Nickel Plated Maximum Switching Frequency: 450Hz Shielding: Partial Maximum Operating Temperature: +70°C Reverse Polarity Protection: Yes Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C
