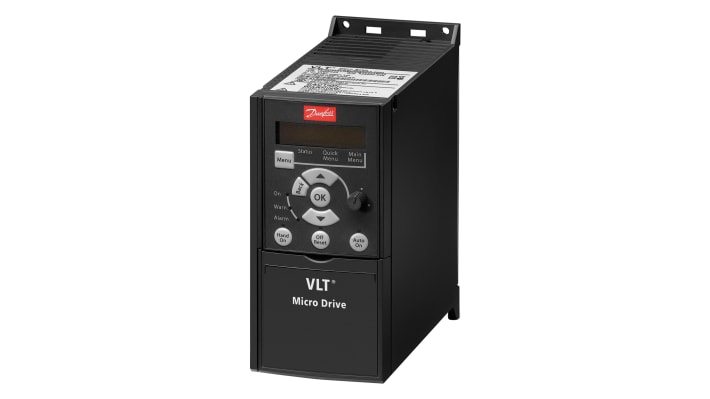

คุณสมบัติ / Specifications
Power Rating: 1.5 kW
Phase: 3
Supply Voltage: 230 V ac
Current Rating: 6.8 A
For Use With: AC Motors
Series: VLT FC51
Field Bus Communication Type: Modbus
IP Rating: IP20
Output Frequency: 0 → 200 (VVC+ Mode) Hz, 0 → 400 (U/f Mode) Hz
STO: No
Drive Type: Variable Speed
Mounting Type: Panel Mount
Filter Included: Yes
Control Panel: Yes
Overall Depth: 168mm
Standards Met: ISO 14001, RoHS, WEEE
Function: Motor Control
Overall Length: 75mm
Overall Width: 176mm
Special Features: 1.5 kW, Excellent Reliability, Integrated Braking Chopper, User Friendly
