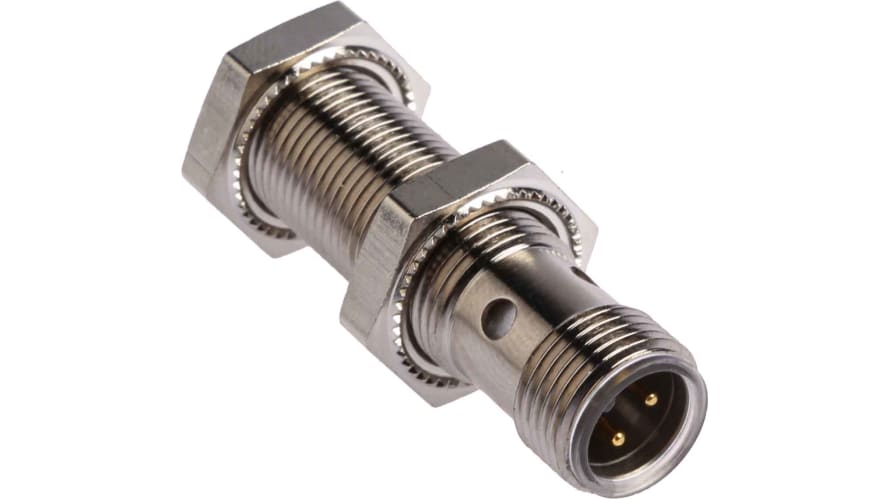

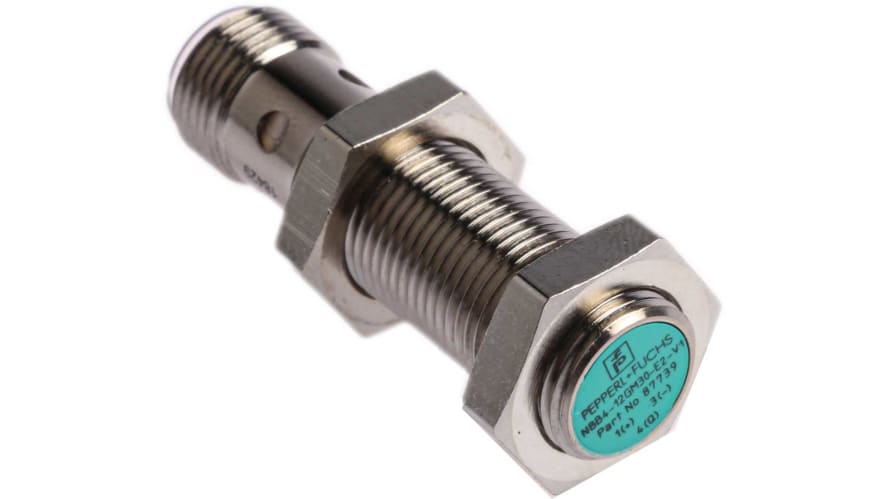

NBB4-12GM30-E2-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, PNP Output, 5 → 36 V dc, IP68

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M12 x 1 Output Type: PNP-NO Detection Range: 4 mm Terminal Type: M12 - 4 Pin IP Rating: IP67 Supply Voltage: 10 → 30 V dc Length: 45mm Maximum DC Voltage: 36V Mounting Type: Flush Switching Current: 150 mA Housing Material: Nickel Plated Brass Maximum Switching Frequency: 2550Hz Maximum Operating Temperature: +85°C Reverse Polarity Protection: Yes Minimum Operating Temperature: -40°C Short Circuit Overload Protection: Yes
