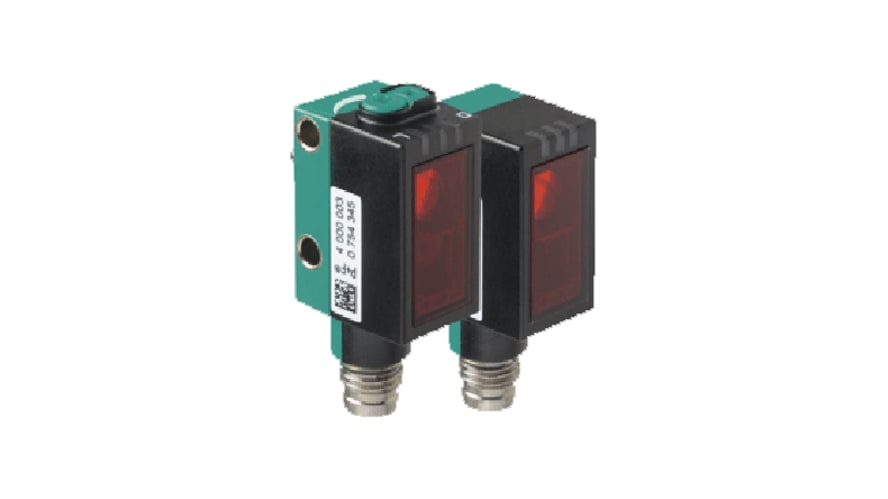

OBE20M-R101-S2EP-IO-V31-L, Pepperl + Fuchs Through Beam Photoelectric Sensor, Block Sensor, 0 → 20 m Detection Range IO-LINK – Model: OBE20M

คุณสมบัติ / Specifications Sensor Style: Block Detection Type: Through Beam Detection Range: 0 → 20 m Output Type: NPN/PNP Electrical Connection: M8 4 Pin Connector Communication Protocol: IO-LINK Maximum DC Voltage: 30V Terminal Type: 4 Pin Connector Light Source: Laser Light IP Rating: IP67, IP69, IP69K Maximum Current: 100 mA Response Time: 400 μs Interface: IO-Link Series: OBE20M Maximum Operating Temperature: +60°C Mounting Type: Panel Mount Minimum Operating Temperature: -40°C Housing Material: PC Standards Met: CE, cULus, E 87056, EMC Directive 2004/108/EC, EN 60825-1:2007, EN 60947-5-2:2007, EN 61131-9:2013, EN 62471:2008, IEC 60825-1:2007, IEC 60947-5-2:2007, IEC 61131-9:2013, UL 60947-5-2: 2014
