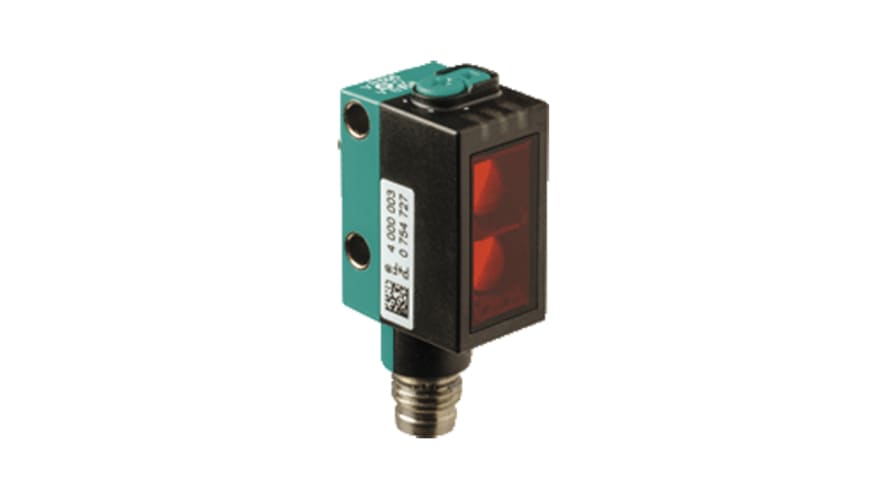

OMT100-R101-2EP-IO-V31-L, Pepperl + Fuchs Distance Distance Sensor, Block Sensor, 40 mm → 100 mm Detection Range IO-LINK – Model: OMT100-R10

คุณสมบัติ / Specifications Sensor Style: Block Detection Type: Distance Detection Range: 40 mm → 100 mm Output Type: NPN/PNP Electrical Connection: M8 4 Pin Connector Communication Protocol: IO-LINK Maximum DC Voltage: 30V Terminal Type: 4 Pin Connector Light Source: Laser Light IP Rating: IP67, IP69, IP69K Maximum Current: 100 mA Response Time: 2 ms Interface: IO-Link Mounting Type: Panel Mount Series: OMT100 Maximum Operating Temperature: +60°C Minimum Operating Temperature: -10°C Housing Material: PC Standards Met: CE, cULus, E 87056, EMC Directive 2004/108/EC, EN 60947-5-2:2007, EN 61131-9:2013, EN 62471:2008, IEC 60947-5-2:2007, IEC 61131-9:2013, UL 60947-5-2: 2014
