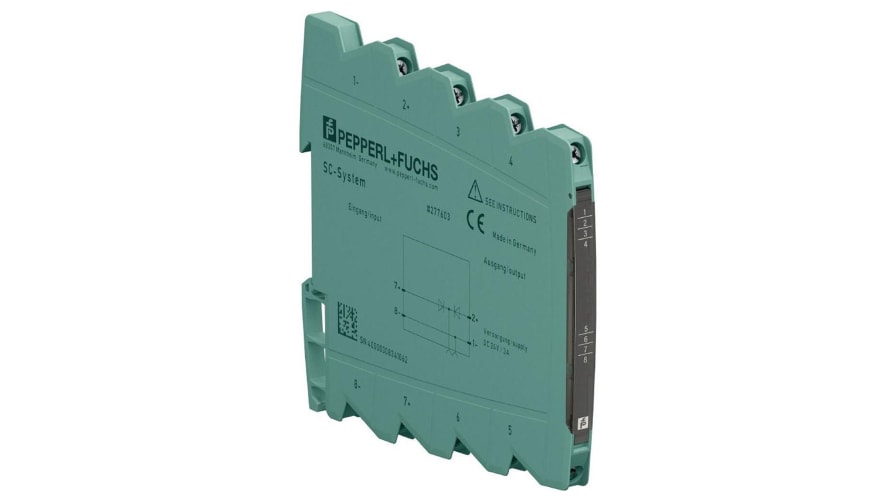

S1SD-1Ai-1C.H, Pepperl + Fuchs S1SD Series Signal Conditioner, Current Input, Current Output, 16.8 → 31.2V dc Supply – Model: S1SD-1Ai-1C.H

คุณสมบัติ / Specifications Module Type: Transmitter Power Supply Input Signal Type: Current Output Signal Type: Current Input Range: 0 → 20 mA, 4 → 20mA Output Range: 0 → 20 mA, 4 → 20mA Supply Voltage: 16.8 → 31.2V dc Mounting Type: DIN Rail Mount Operating Temperature Range: -25 → +70°C Series: S1SD Maximum Operating Temperature: +70°C Termination: Screw Minimum Operating Temperature: -25°C
