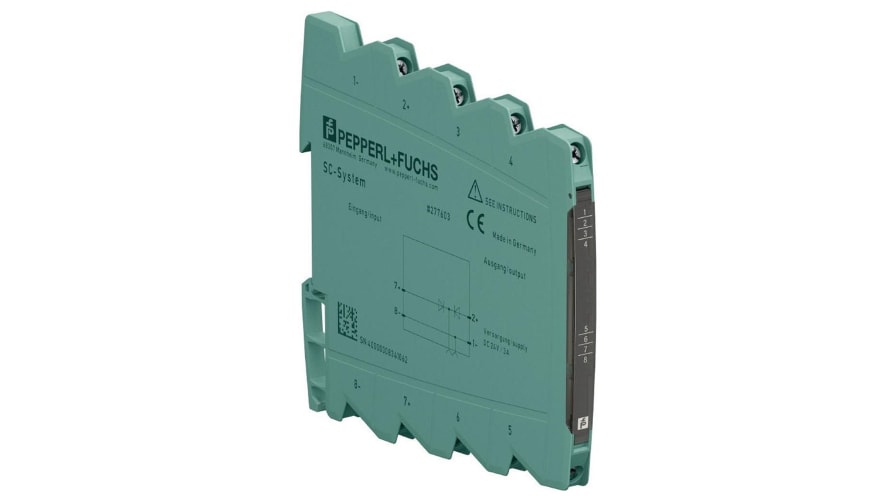

S1SD-1AI-1U.1, Pepperl + Fuchs S1SD Series Signal Conditioner, Current, Voltage Input, Current, Voltage Output, 16.8 → 31.2V dc – Model: S1S

คุณสมบัติ / Specifications Module Type: Isolation Amplifier Input Signal Type: Current, Voltage Output Signal Type: Current, Voltage Input Range: 30 V, 50 mA, 0 → 10 V, 0 → 20 mA, 2 → 10 V, 4 → 20mA Output Range: 0 → 10 V, 0 → 20 mA, 2 → 10 V, 4 → 20mA Supply Voltage: 16.8 → 31.2V dc Mounting Type: DIN Rail Mount Operating Temperature Range: -25 → +70°C Series: S1SD Minimum Operating Temperature: -25°C Termination: Screw Maximum Operating Temperature: +70°C
