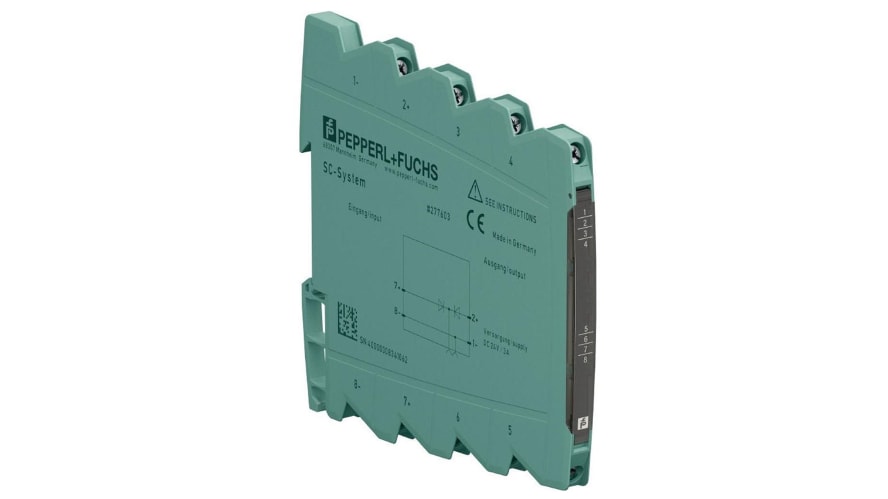

S1SD-1Ai-2U, Pepperl + Fuchs S1SD Series Signal Conditioner, Current Input, Current, Voltage Output, 16.8 → 31.2V dc Supply, – Model: S1SD-1

คุณสมบัติ / Specifications Module Type: Isolation Amplifier Input Signal Type: Current Output Signal Type: Current, Voltage Input Range: 0 → 20 mA, 4 → 20mA Output Range: 0 → 10 V, 0 → 20 mA, 2 → 10 V, 4 → 20mA Supply Voltage: 16.8 → 31.2V dc Hazardous Area Certification: ATEX, IECEx Mounting Type: DIN Rail Mount Operating Temperature Range: -25 → +70°C Series: S1SD Termination: Screw Minimum Operating Temperature: -25°C Maximum Operating Temperature: +70°C
