คุณสมบัติ / Specifications

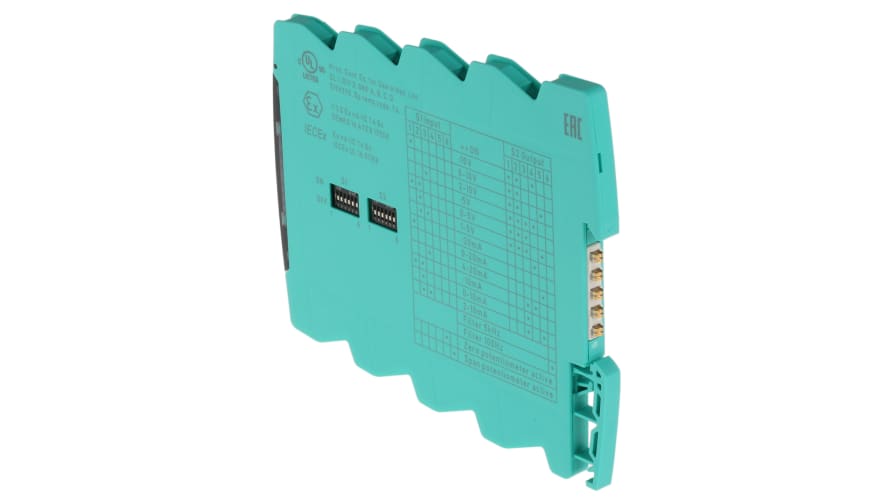

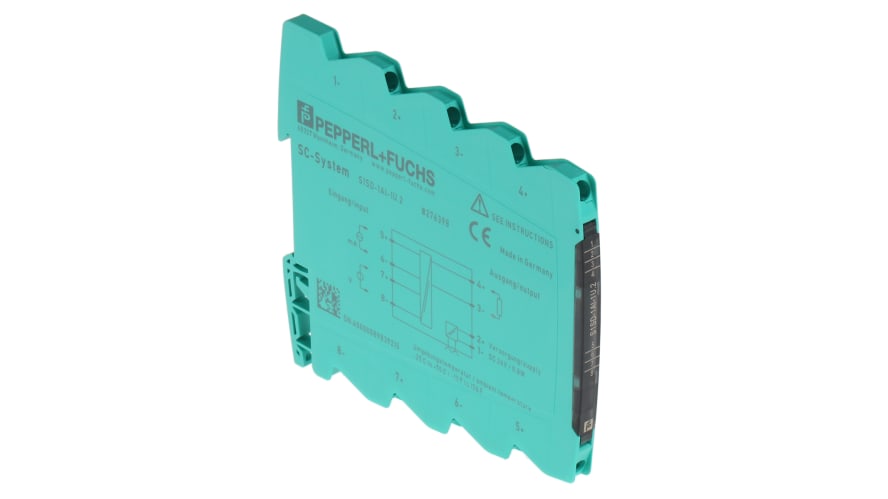

Module Type: Isolation Amplifier
Input Signal Type: Current, Voltage
Output Signal Type: Current, Voltage
Input Range: 30 V, 50 mA, ±10 mA, ±10 V, ±20 mA, ±5 V, 0 → 10 V, 0 → 10 mA, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 mA, 2 → 10 V, 4 → 20mA
Output Range: 0 mA, ±10 V, ±20 mA, ±5 V, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, 4 → 20mA
Supply Voltage: 16.8 → 31.2V dc
Mounting Type: DIN Rail Mount
Operating Temperature Range: -25 → +70°C
Series: S1SD
Maximum Operating Temperature: +70°C
Minimum Operating Temperature: -25°C
Termination: Screw
