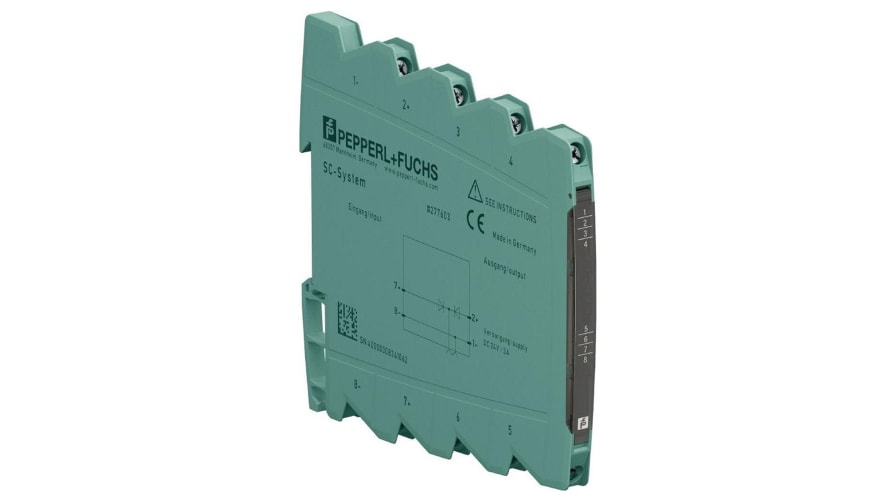

S1SD-1AI-1U.3, Pepperl + Fuchs S1SD Series Signal Conditioner, Voltage Input, Current, Voltage Output, 16.8 → 31.2V dc Supply, – Model: S1SD

คุณสมบัติ / Specifications Module Type: MV Converter Input Signal Type: Voltage Output Signal Type: Current, Voltage Input Range: ±100 mV, ±150 mV, ±250 mV, ±300 mV, ±500 mV, ±60mV Output Range: 0 mA, ±10 V, ±20 mA, ±5 V, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, 4 → 20mA Supply Voltage: 16.8 → 31.2V dc Hazardous Area Certification: ATEX, IECEx Mounting Type: DIN Rail Mount Operating Temperature Range: -25 → +70°C Series: S1SD Minimum Operating Temperature: -25°C Maximum Operating Temperature: +70°C Termination: Screw
