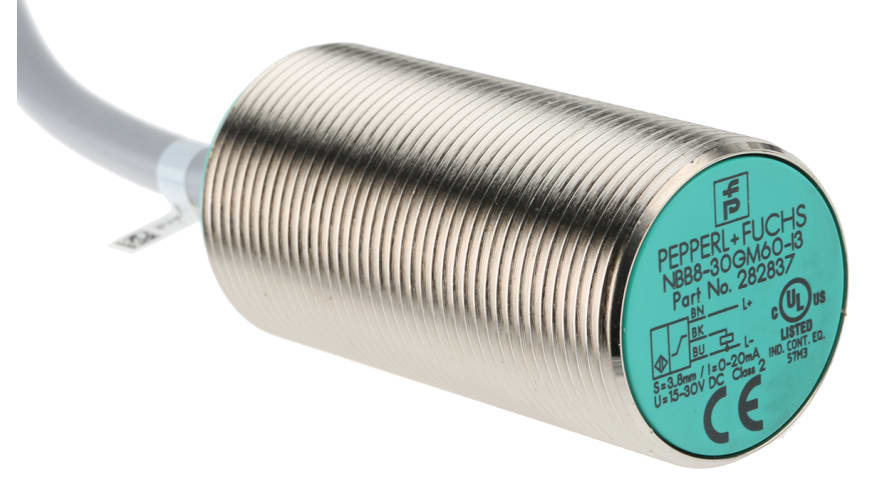

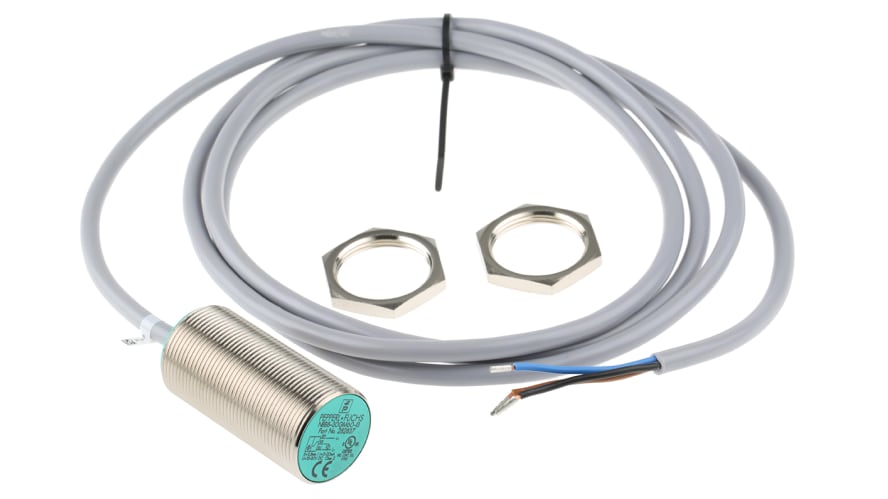

NBB8-30GM60-I3, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 8 mm Detection, Analogue Output, 15 → 30 V – Model: NBB8

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M30 x 1.5 Output Type: Analogue Detection Range: 8 mm Terminal Type: Cable Supply Voltage: 15 → 30 V dc IP Rating: IP67 Length: 60mm Width: 30mm Maximum DC Voltage: 30V Mounting Type: Flush Switching Current: 20 mA Housing Material: Brass Maximum Operating Temperature: +70°C Standards Met: CCC Approval, CE Certified, cULus Certified, cULus Listed, EN 60947-5-2, EN 60947-5-7, IEC 60947-5-2, IEC 60947-5-7 Minimum Operating Temperature: -25°C
