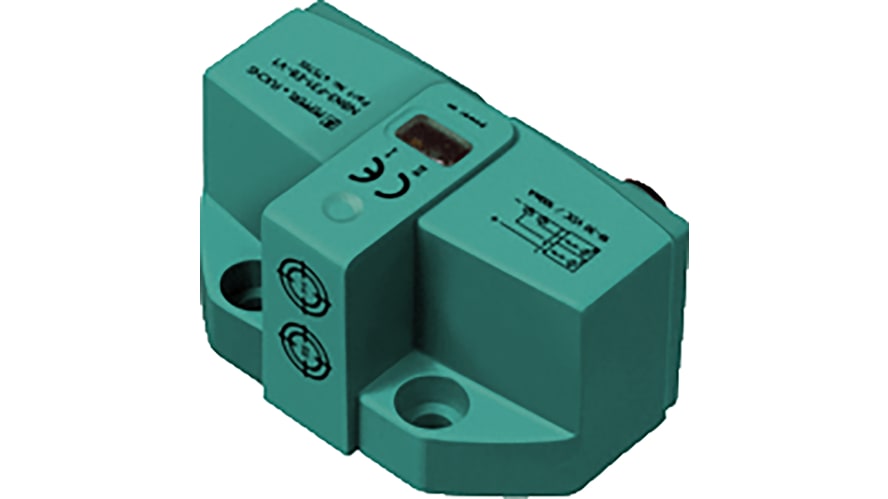

NBN3-F31-E8-V1, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 3 mm Detection, PNP Output, 10 → 30 V dc, IP67 – Model: NBN3-F31-E8-

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: PNP Detection Range: 3 mm Terminal Type: 4-Pin M12 Connector Supply Voltage: 10 → 30 V dc IP Rating: IP67 Length: 65mm Width: 36mm Depth: 33.5mm Maximum DC Voltage: 30V Mounting Type: Non-Flush Switching Current: 100 mA Maximum Switching Frequency: 500Hz Maximum Operating Temperature: +70°C Housing Material: PBT Reverse Polarity Protection: Yes Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C Standards Met: CCC Certified, cCSAus Listed, CE Certified, cULus Listed, EAC Certified, EN 60947-5-2, IEC 60947-5-2
