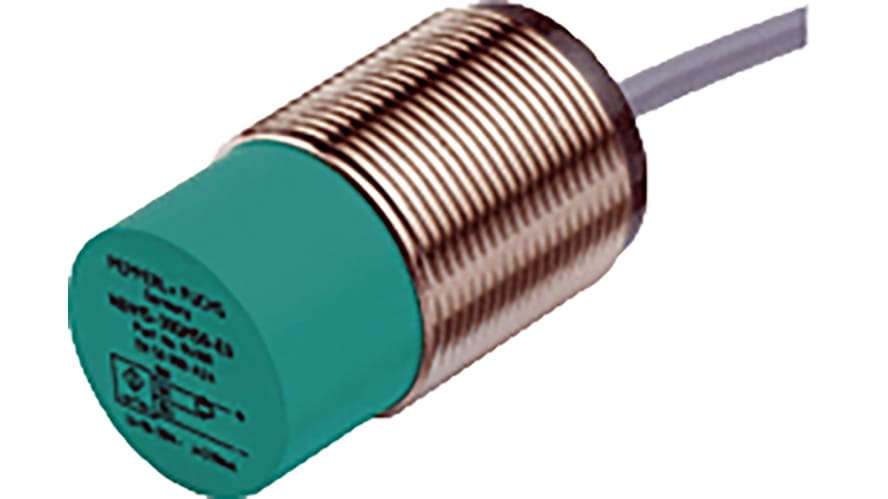

NBN25-30GM50-E2, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 25 mm Detection, PNP Output, 5 → 36 V dc, – Model: NBN2

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M30 x 1.5 Output Type: PNP Detection Range: 25 mm Terminal Type: Cable Supply Voltage: 5 → 36 V dc IP Rating: IP68 Length: 50mm Maximum DC Voltage: 36V Mounting Type: Non-Flush Switching Current: 200 mA Maximum Switching Frequency: 400Hz Housing Material: Brass, White Bronze Coated Maximum Operating Temperature: +85°C Short Circuit Overload Protection: Yes Standards Met: CCC Certified, cCSAus Listed, CE Certified, cULus Listed, EN 60947-5-2, IEC 60947-5-2 Reverse Polarity Protection: Yes Minimum Operating Temperature: -40°C
