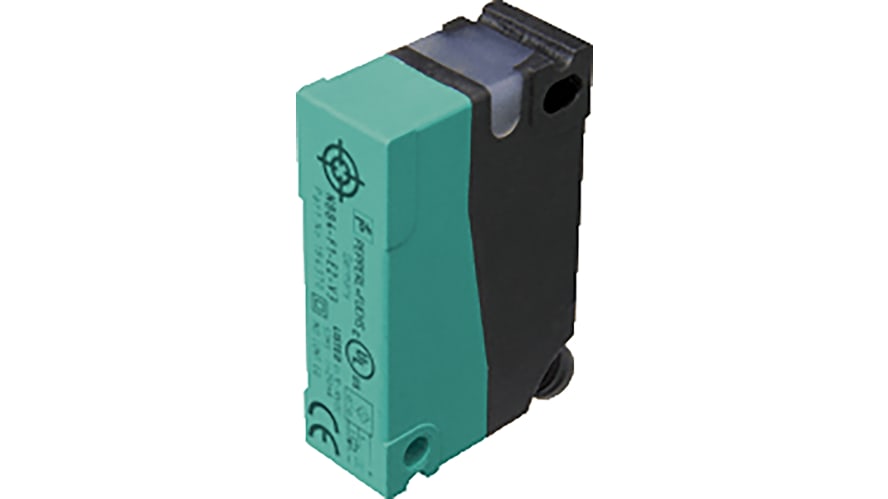

NBB4-F1-E2-V3, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 4 mm Detection, PNP Output, 10 → 30 V dc, IP67 – Model: NBB4-F1-E2-V3

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: PNP Detection Range: 4 mm Terminal Type: 3-Pin M8 Connector IP Rating: IP67 Supply Voltage: 10 → 30 V dc Length: 12mm Width: 26mm Depth: 40mm Maximum DC Voltage: 30V Mounting Type: Flush Switching Current: 250 mA Maximum Switching Frequency: 1.4kHz Housing Material: Polyamide Maximum Operating Temperature: +70°C Short Circuit Overload Protection: Yes Reverse Polarity Protection: Yes Standards Met: CCC Certified, cCSAus Listed, CE Certified, cULus Listed, EN 60947-5-2, IEC 60947-5-2 Minimum Operating Temperature: -25°C
