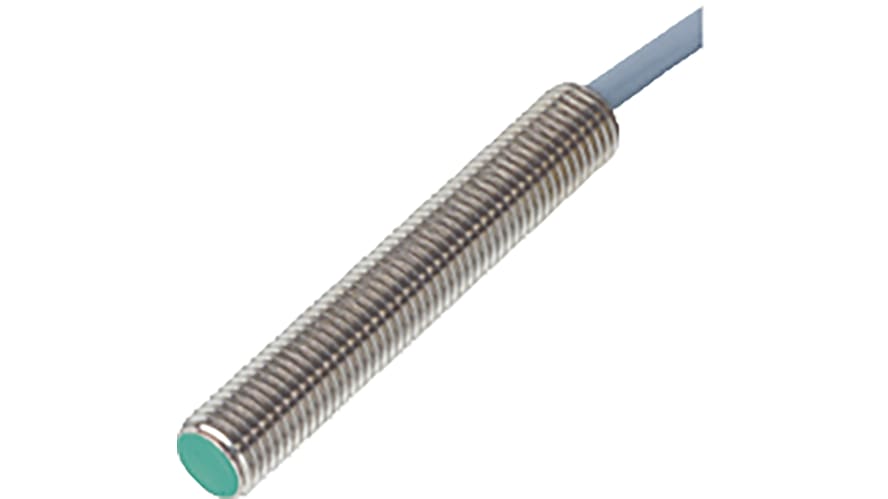

NBB2-8GM50-A2, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M8 x 1, 2 mm Detection, PNP Output, 5 → 30 V dc, IP67 – Model: NBB2-

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M8 x 1 Output Type: PNP Detection Range: 2 mm Terminal Type: Cable IP Rating: IP67 Supply Voltage: 5 → 30 V dc Length: 50mm Mounting Type: Flush Switching Current: 100 mA Maximum Switching Frequency: 6kHz Housing Material: Brass Maximum Operating Temperature: +85°C Minimum Operating Temperature: -40°C Standards Met: CCC Certified, CE Certified, cULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1 Reverse Polarity Protection: Yes Short Circuit Overload Protection: Yes
