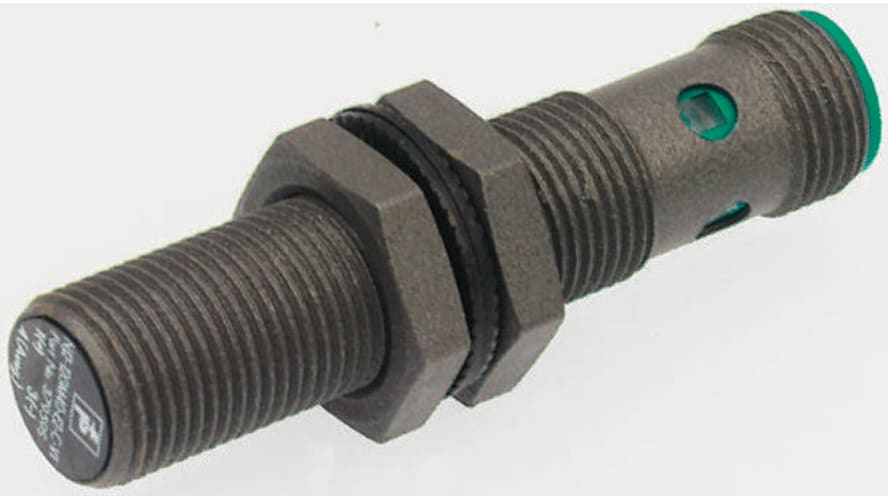

NBB5-18GM50-E2-C-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M18 x 1, 5 mm Detection, PNP Output, 10 → 30 V dc, IP67 – Mode

คุณสมบัติ / Specifications Sensor Technology: Inductive Thread Size: M18 x 1 Body Style: Barrel Output Type: PNP-NO Detection Range: 5 mm Terminal Type: M12 - 4 Pin Supply Voltage: 10 → 30 V dc IP Rating: IP67 Length: 65mm Maximum DC Voltage: 30V Switching Current: 200 mA Maximum Switching Frequency: 800Hz Housing Material: PTFE Coated Brass Maximum Operating Temperature: +70°C Minimum Operating Temperature: -25°C Reverse Polarity Protection: Yes Short Circuit Overload Protection: Yes
