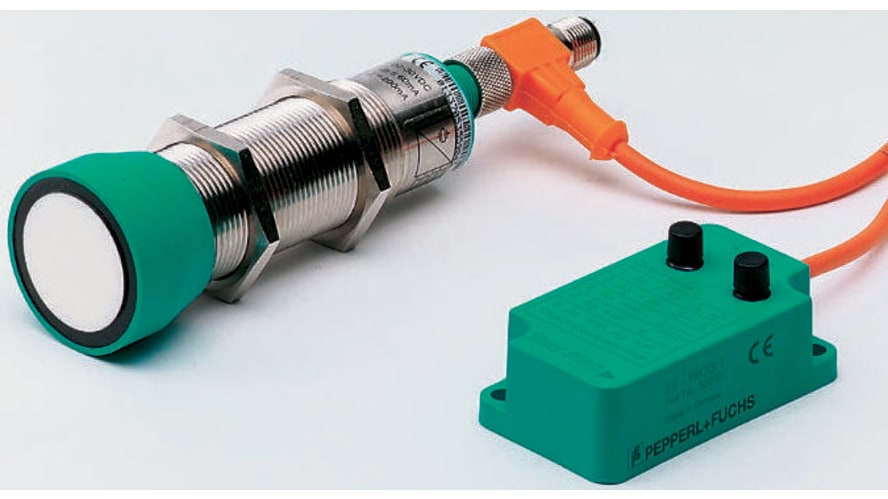

UB500-30GM-E4-V15, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, M30 x 1.5, 30 → 500 mm Detection, NPN Output, 10 – Model: UB500

คุณสมบัติ / Specifications Sensor Technology: Ultrasonic Body Style: Barrel Thread Size: M30 x 1.5 Output Type: NPN-NO/NC Detection Range: 30 → 500 mm Terminal Type: M12 - 5 Pin Supply Voltage: 10 → 30 V dc IP Rating: IP65 Length: 94mm Switching Frequency: ≤10 Hz Maximum DC Voltage: 30V Switching Current: 200 mA Maximum Operating Temperature: +70°C Housing Material: Nickel Plated Brass Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C
