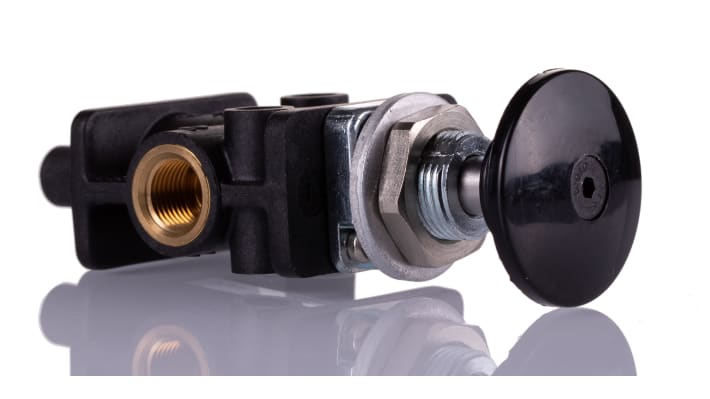

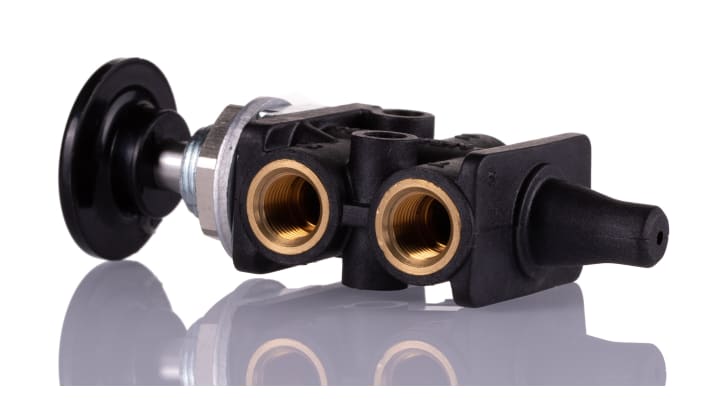

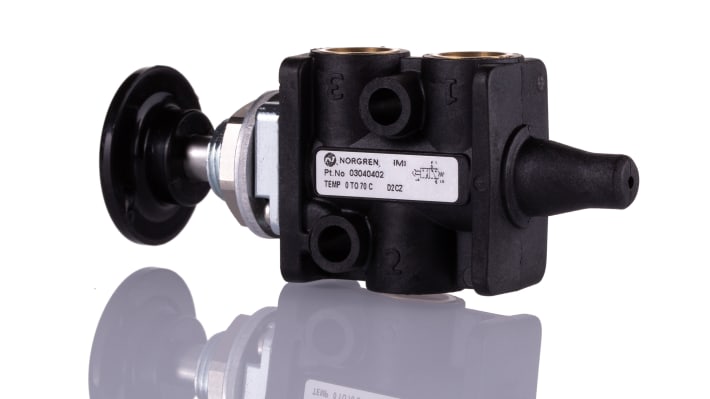

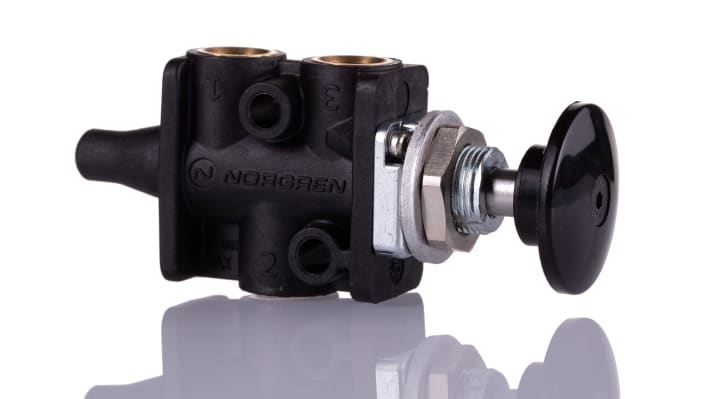

IMI Norgren 3/2 Mechanical Valve 304 Series, G 1/8, 1/8

รายละเอียดสินค้า / Product Details

**IMI Norgren Mechanical Valve, 10 Bar Maximum Operating Pressure, 1/8 Thread Size – 304 Series – 03040402**
Use this mechanical valve from IMI Norgren to control the flow of fluids in your pneumatic systems. It has three connection ports and two switching positions, ensuring that there’s a speedy switchover process and limited downtime. A wide operating temperature range between 0°C and +70°C, makes this a suitable choice for use in harsh industrial environments. A maximum port assembly torque of 10Nm provides a tight fitting to standard equipment for vibration resistance and safe operation. NBR seals prevent external contamination from dust and lint, helping extend the service life of the valve.

**Features & Benefits**
• PA body resists corrosion and impacts to deliver long-lasting performance
• Broad operating pressure range between 0.9 and 10 bar for use in low-pressure and high-pressure applications
• Low weight of 70g puts minimal strain on your equipment

**Applications**
• Water treatment plants
• Laboratory equipment
• Medical facilities

**How do I mount this component?**
This unit can be securely mounted using the pre-drilled holes on the valve’s body to achieve a secure and vibration-proof fix on your equipment.
