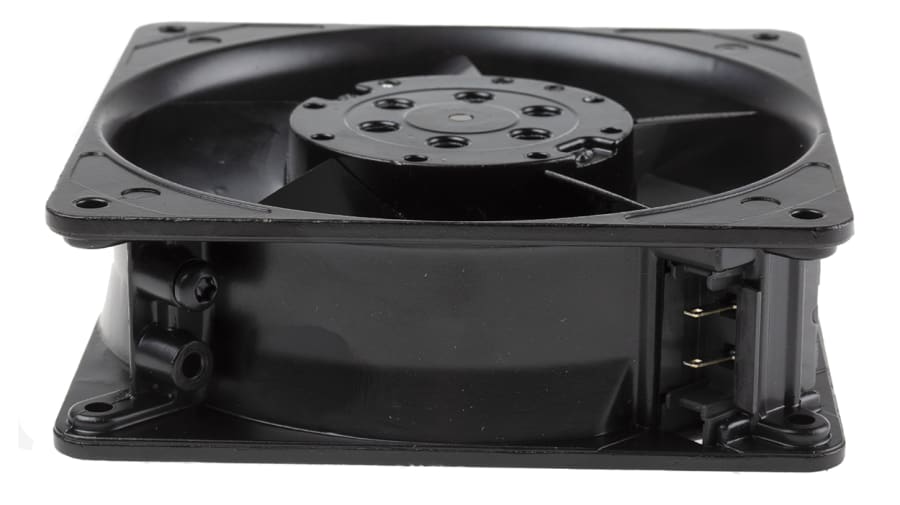

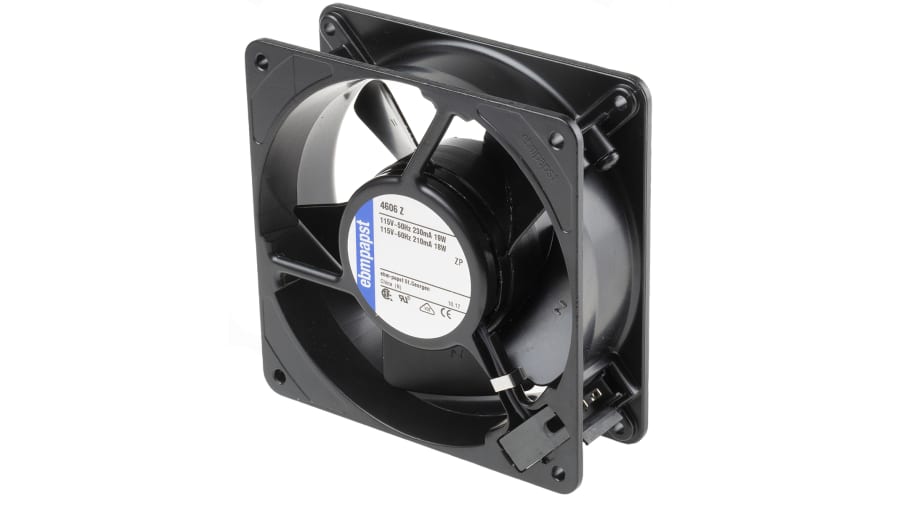

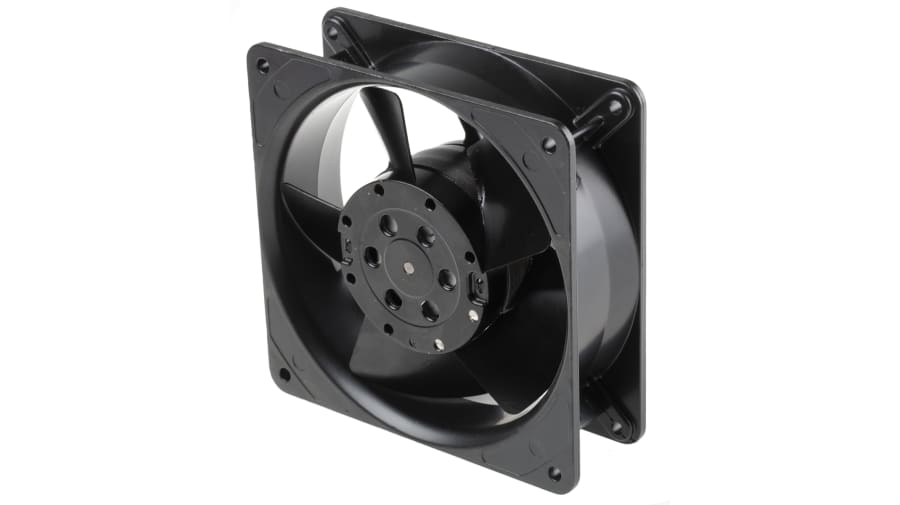

ebm-papst 4000 Z Series Axial Fan, 115 V ac, AC Operation, 180m³/h, 18W, 119 x 119 x 38mm

รายละเอียดสินค้า / Product Details

**ebm-papst 4000 Z Series Compact AC Axial Fans**

**What is an AC Axial Fan?**
AC axial fans are used when DC voltage is not available and are designed to create airflow with a high flow rate and medium pressure. Axial fans have an impeller surrounded by blades which works in a similar way to a propeller. The motor of the fan is integrated into the hub of the impeller to provide a compact fan unit. The impeller draws in air axially in a parallel direction to the revolving motor shaft and forces air out in the same direction. The axial fan is surrounded by a flanged housing with mounting holes allowing it to be mounted inside equipment.

**External Rotor Motor**
Unlike traditional internal rotor motors where the rotating shaft is surrounded by electromagnetic coils ebm-papst fans feature an external rotor motor. In an external rotor motor the magnetic coils are encased inside a rotating shell. The advantage of this design is that external rotor motors are more compact in size, run more efficiently and are less prone to overheating than internal rotor motors

**Expertly Designed**
The fan impellers and the inner shape housing of the ebm-papst compact AC axial fans are expertly designed using state-of-the-art computer software. The blades are aerodynamically engineered and dynamically balanced in two planes for optimum performance. The air output and motor performance are precisely matched to the size of the fan which results in low noise, even at high back pressure.

**Key Features and Benefits of the EBM Papst 4000 Z Series**
• Fan motor integrated into the impeller hub to form a compact fan unit
• Air exhaust over the struts
• External rotor shaded pole motor
• Compact 119 x 119 mm design with small installation depth of 38 mm
• Expertly designed for maximum efficiency and performance
• Aerodynamic blades for low noise level and increased efficiency
• Choice of bearing types including PAPST Sintec sleeve bearings for low noise and low shock sensitivity
• Flanged housings with mounting holes for installation into equipment
• Diecast alloy housing for a robust construction
• IP20 protection rating
• Protection from overload by impedance protection
• Long service life

**Housing Features**
The housings of these compact AC axial fans feature a grounding lug and 8 x M4 tapping screws

**How Do I Connect the Fan?**
These 4000 Z series axial fans feature 2 flat 2.8 x 0.5 mm blade terminals. (Stock numbers
211-9314
and
211-9320
have 2 x flat 2.8 x 0.8 mm blade terminals). To connect the fan, you need to purchase a cable with a mating receptacle connector (see stock numbers
118-3077
,
826-1329
,
118-3156
or
118-3099
for the 0.5 mm plugs and stock numbers
507-450
and
502-708
for the 0.8 mm plugs) Stock number
813-3375
is supplied with a 310 mm lead wire

**What Accessories are Available?**
• Finger Guards: Finger guards for these fans can be purchased separately (see stock numbers
101-8096
,
512-581
,
826-1357
,
826-1354
and
826-1363
).
• Filter Fan Guard: stock number
482-207
and
482-140
• Fan Filter Mounting Strap: stock number
826-1398
• Mounting Screw Clip: stock number
482-203

**Fan Kits**
4000 series fan kits are also available which comprise of a fan, lead and wire guard or fan, lead and filter. Please see stock numbers
797-2258
and
797-2230
typically

**Energy Saving Versions**
The ACi 4400 series axial fans are energy saving versions of the 4000 N series. These fans utilise motors with GreenTech EC technology offering enhanced performance with a fraction of the energy usage of conventional motors. See stock numbers
740-6385
and
912-6123
typically

**Applications**
These compact AC axial fans are designed for hot or cold air exchange in a wide range of devices and systems. These applications include the following:
• Catering
• Domestic Appliances
• Enclosures
• Fans, motors and pumps
• Heating and ventilation
• Industrial drives
• Instruments
• Lighting
• Machines and Industrial
• Medical
• Power Supplies
• Printing
• Telecom
• UV systems
