คุณสมบัติ / Specifications
Supply Voltage: 24 V dc
Height: 150mm
AC or DC Operation: DC
Width: 172mm
Power Consumption: 17W
Depth: 51mm
Maximum Current: 750mA
Dimensions: 172 x 150 x 51mm
Termination Type: Flat Plug
Air Flow: 410m³/h
Noise Level: 57dB
Fan Speed: 3400rpm
Bearing Type: Ball
IP Rating: IP20
-20%
สินค้าในกลุ่มนี้ทั้งหมด
ebm-papst RG 160 N Series Centrifugal Fan, 230 V ac, 202m³/h, AC Operation, 220 x 220 x 56mm ฿8,752.00 Original price was: ฿8,752.00.฿7,002.00Current price is: ฿7,002.00. รวมภาษีมูลค่าเพิ่มแล้ว
ebm-papst Fan Filter for 119 x 119mm Fans, ABS Frame ฿3,115.00 Original price was: ฿3,115.00.฿2,492.00Current price is: ฿2,492.00. รวมภาษีมูลค่าเพิ่มแล้ว

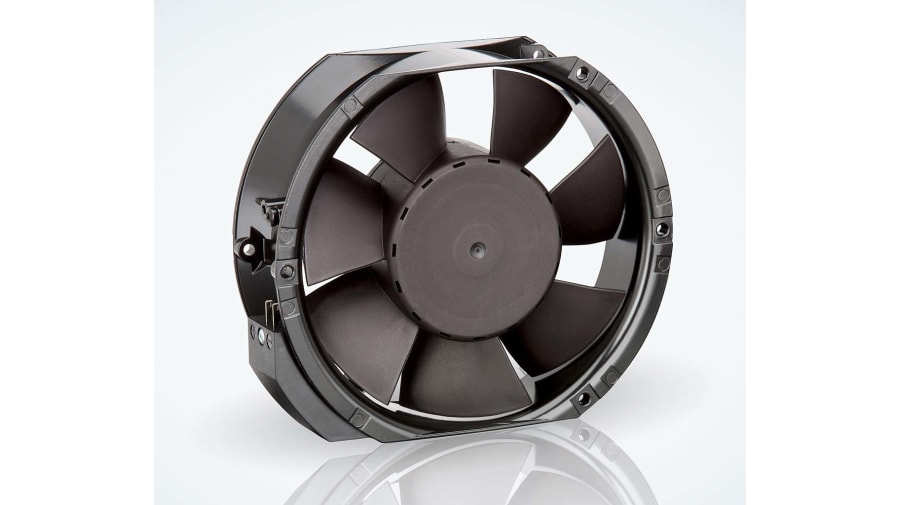

ebm-papst 6400 Series Axial Fan, 24 V dc, DC Operation, 410m³/h, 17W, 750mA Max, IP20, 172 x 150 x 51mm
รหัสสินค้า: 6424฿5,889.00 Original price was: ฿5,889.00.฿4,711.00Current price is: ฿4,711.00. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 4-7 วันทำการ
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details
**ebm-papst High Performance Ball Bearing Fans**
ebm-papst high performance ball bearing fans are an ideal soultion to a wide range of applications, featuring fibreglass-reinforced plastic and completely integrated electronic commutation.
Material: fibreglass-reinforced plastic
Fully integrated electronic commutation
Protected against reverse polarity and locking
Connected via single strands AWG 24, TR 64. Bared and tin-plated.
**Approvals**
UL; CSA
รหัสสินค้า: 6424 หมวดหมู่: อุปกรณ์ควบคุมไฟฟ้าอุตสาหกรรมและPLC
