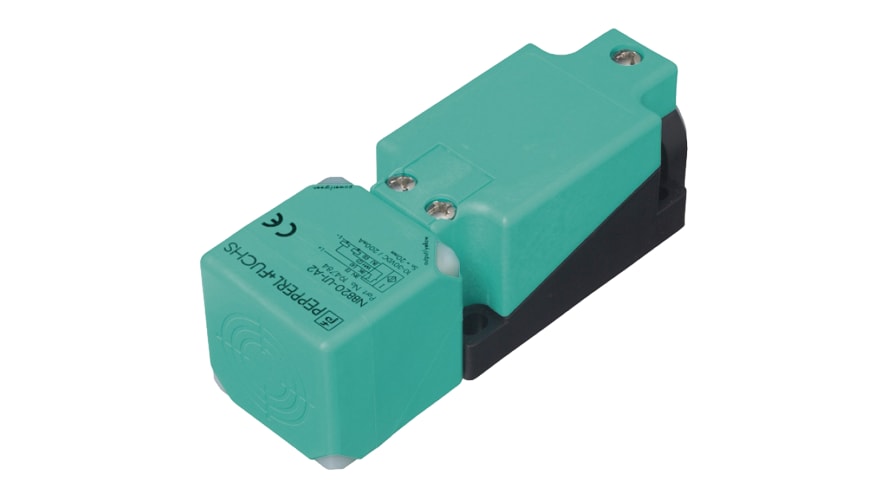

NBB15-U1-A2-V1, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 15 mm Detection, PNP Output, 10 → 30 V dc, IP68, IP69K – Model: NBB1

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: PNP Detection Range: 15 mm Terminal Type: 4-Pin M12 Connector IP Rating: IP68, IP69K Supply Voltage: 10 → 30 V dc Length: 118mm Width: 40mm Depth: 40mm Maximum DC Voltage: 30V Mounting Type: Flush Switching Current: 200 mA Maximum Switching Frequency: 200Hz Maximum Operating Temperature: +85°C Housing Material: Polyamide Short Circuit Overload Protection: Yes Standards Met: CCC, CSA, EN 60497-5-2: 2007, IEC 60947-5-2: 2007, UL Reverse Polarity Protection: Yes Minimum Operating Temperature: -25°C
