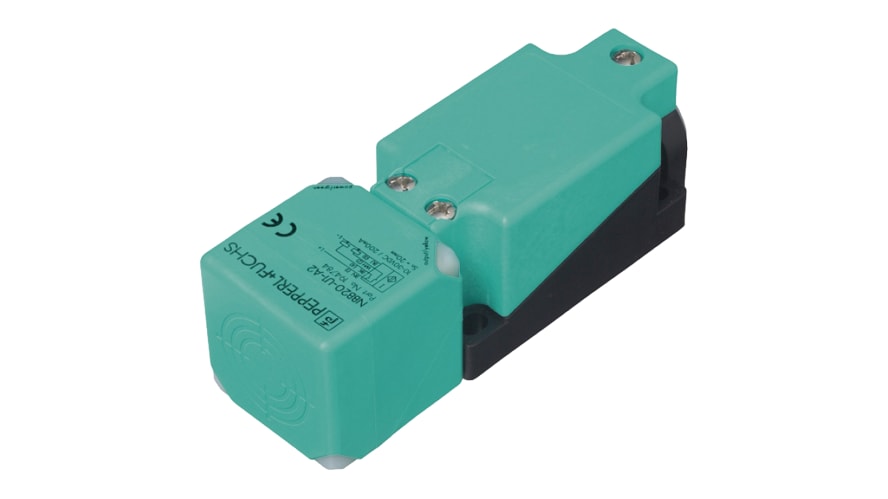

NBB15-U1-Z2, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 15 mm Detection, 5 → 60 V dc, IP68, IP69K – Model: NBB15-U1-Z2

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Detection Range: 15 mm Terminal Type: M20 Gland Supply Voltage: 5 → 60 V dc IP Rating: IP68, IP69K Length: 118mm Width: 40mm Depth: 40mm Maximum DC Voltage: 60V Mounting Type: Flush Switching Current: 200 mA Maximum Switching Frequency: 400Hz Housing Material: Polyamide Maximum Operating Temperature: +85°C Reverse Polarity Protection: Yes Standards Met: CCC, CSA, EN 60497-5-2: 2007, IEC 60947-5-2: 2007, UL Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C
