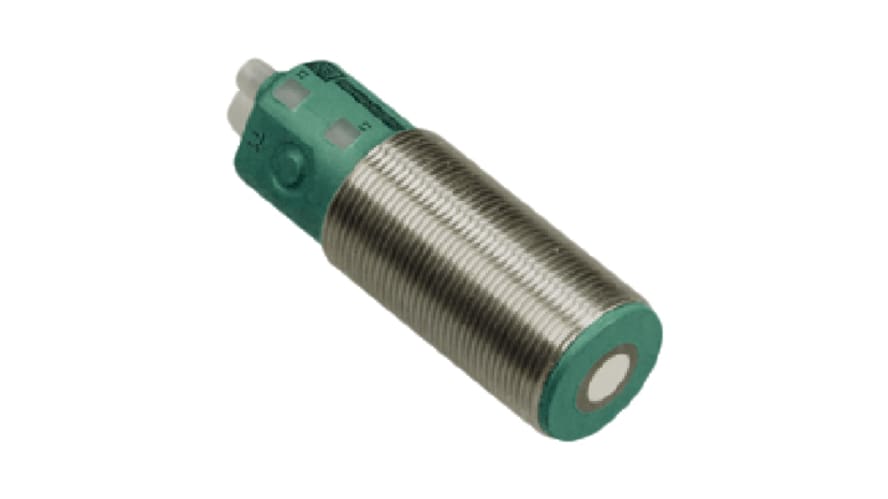

UC500-30GM-2EP-IO-V15, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, M30 x 1.5, 30 → 500 mm Detection, NPN Output, 10 – Model: U

คุณสมบัติ / Specifications Sensor Technology: Ultrasonic Thread Size: M30 x 1.5 Body Style: Barrel Output Type: NPN Detection Range: 30 → 500 mm Terminal Type: 5-Pin M12 Connector Supply Voltage: 10 → 30 V dc IP Rating: IP67 Length: 81mm Communication Protocol: IO-LINK Switching Frequency: ≤11 Hz Maximum DC Voltage: 30V Maximum Operating Temperature: +70°C Housing Material: Polyamide, Stainless Steel, TPU Reverse Polarity Protection: Yes Standards Met: CCC, cCSAus Listed, CE, cULus Listed, EN, IEC, IO-Link Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C
