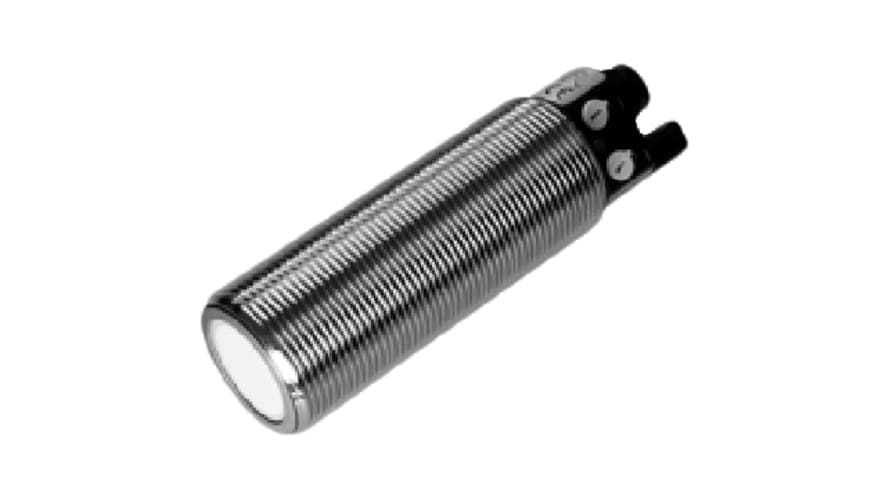

UC3500-30GM70-IE2R2-V15, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, M30 x 1.5, 200 → 3500 mm Detection, Analogue, PNP – Model

คุณสมบัติ / Specifications Sensor Technology: Ultrasonic Thread Size: M30 x 1.5 Body Style: Barrel Output Type: Analogue, PNP Detection Range: 200 → 3500 mm Terminal Type: 5-Pin M12 Connector Supply Voltage: 20 → 30 V dc IP Rating: IP65 Length: 89mm Switching Frequency: ≤2 Hz Maximum DC Voltage: 30V Switching Current: 300 mA Housing Material: Brass Nickel Plated Maximum Operating Temperature: +70°C Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C Standards Met: CCC, cCSAus Listed, CE, cULus Listed, EN, IEC
