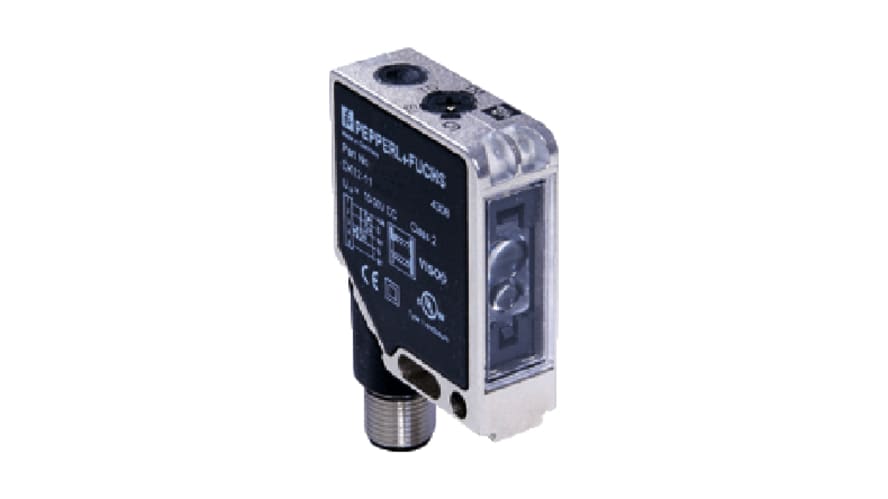

DK12-11/124/136, Pepperl + Fuchs Diffuse Photoelectric Sensor, Block Sensor, 11 mm Detection Range – Model: DK12-11/124/136

คุณสมบัติ / Specifications Sensor Style: Block Detection Type: Diffuse Detection Range: 11 mm Output Type: NPN/PNP Electrical Connection: M12 5 Pin Connector Maximum DC Voltage: 30V Terminal Type: M12 Connector Light Source: LED IP Rating: IP67 Maximum Current: 80 mA Response Time: 50 μs Housing Material: Fibreglass Reinforced Plastic PC (Laterals), Nickel Plated Die Cast Zinc (Frame) Maximum Operating Temperature: +60°C Mounting Type: Threaded Minimum Operating Temperature: -20°C Standards Met: CE, cULus, VISC
