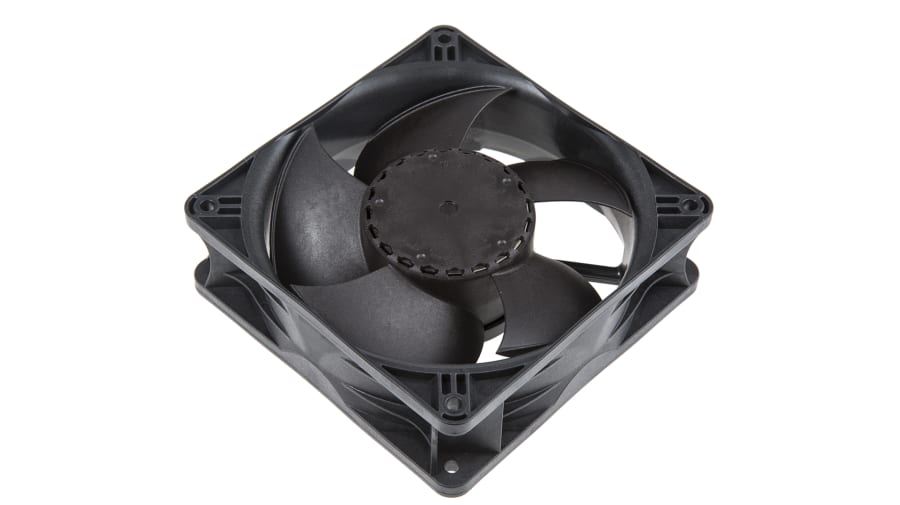

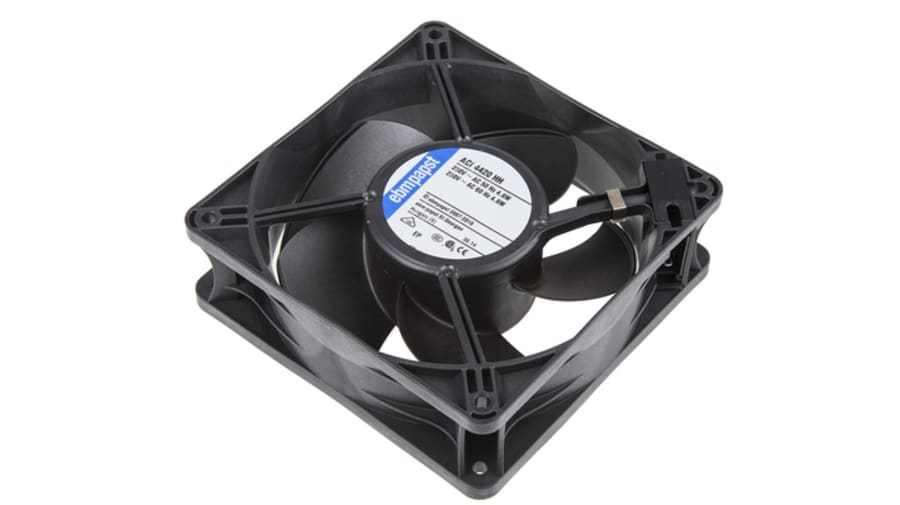

ebm-papst ACi 4400 Series Axial Fan, 230 V ac, AC Operation, 175m³/h, 4.4W, 119 x 119 x 38mm

รายละเอียดสินค้า / Product Details

**ebm-papst GreenTech EC Axial Fan, 175cu.m/h 230V**
The ebm-papst ACi GreenTech EC fan is a high-tech cooling solution. It is available in the size of 119mm x 119mm x 38mm and supply voltage of 230VAC. The fan has 3350rpm motor speed. These units are equipped with maintenance-free ball bearings and have a service life of 62,500 hours at 40°C. The ebm-papst AC fans provide a flexible and dependable cooling solution for applications that lets you mount it in any axial position. The fan has a power consumption rating of 4.4W.
The ACi 4400 series utilises motors with GreenTech EC technology offering enhanced performance with a fraction of the energy usage of conventional motors. High pressure and airflow can be achieved with low operating noise. A wide selection of speeds is available with varying nominal voltages.

**Features and Benefits**
Energy-efficient AC fan with EC technology
Conversion and drive electronics fully integrated
Long service life
Airflow of 175m³/h
Fan speed not dependent on line frequency
Electronic locked rotor protection
Operating temperature ranges between -20°C and 75°C

**Applications**
Catering
Domestic appliances
Enclosures
Fans, motors, and pumps
Heating and ventilation
Industrial drives
Instruments
Lighting
Machines and industrial
Medical
Power supplies
Printing
Telecom
UV systems
IP20 rating

**Certifications**
UL approved
CSA
VDE

**GreenTech EC Technology**
GreenTech EC refers to the motor used in multiple series’ of fans from the ebm-papst range. These motors have been specifically developed to offer maximum energy-efficiency and enable the equipment to be as economical as possible. This gives a reduction in operating costs while still giving improved performance over conventional motors. They also set a new standard in reliability and service life further reducing any operating and maintenance costs.
