คุณสมบัติ / Specifications
Port Connection: G 1/4
Maximum Operating Pressure: 10 bar
Manufacturer Series: B07
Drain Type: Automatic
Filtration Size: 40µm
Pressure Gauge Port: Rc 1/8
Pressure Gauge Port Thread Size: 1/8 in
Port Connection Thread Size: 1/4 in
Maximum Ambient Operating Temperature: +50°C
Minimum Operating Pressure: 0.3bar
Ambient Operating Temperature Range: -34 → +50°C
Port Connection Thread Standard: G
Pressure Gauge Port Thread Standard: Rc
Bowl Material: Polycarbonate
Minimum Ambient Operating Temperature: -34°C
สินค้าในกลุ่มนี้ทั้งหมด

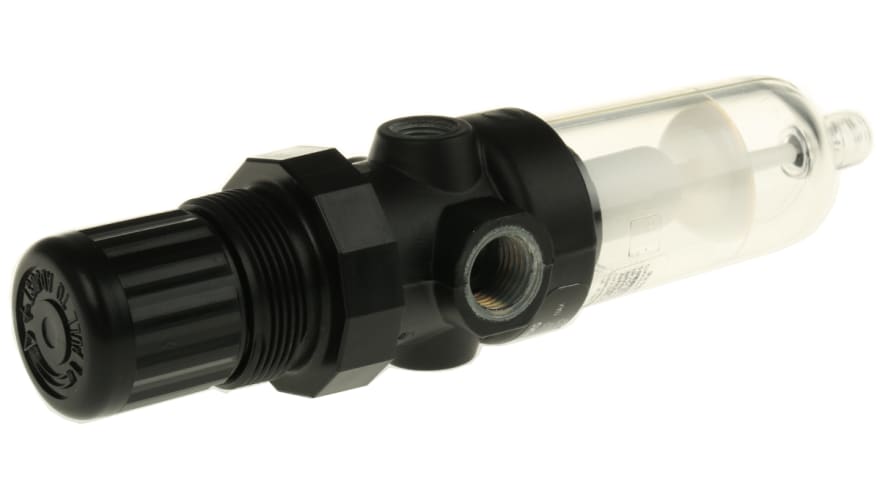

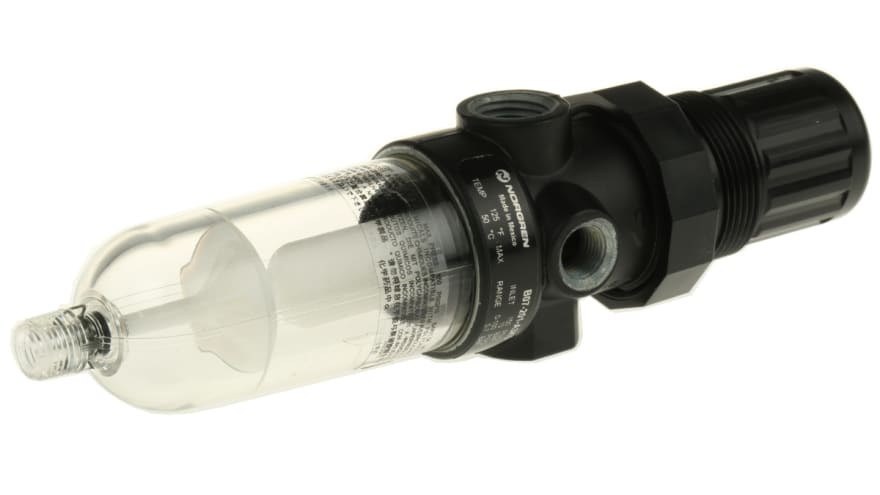

Norgren B07 Filter Regulator, 40μm, G 1/4, Automatic
รหัสสินค้า: B07-201-A3KG฿5,814.00 Original price was: ฿5,814.00.฿4,651.00Current price is: ฿4,651.00. รวมภาษีมูลค่าเพิ่มแล้ว
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details
**IMI Norgren Pneumatic Filter Regulator, 40μm Filtration, G1/4 Port – B07 Series – B07-201-A3KG**
Achieve precise control over the compressed air in your pneumatic system with this filter regulator from IMI Norgren. It maintains a stable air pressure at a pre-set level between 0.3 and 7 bar to optimise efficiency. With its 40μm filtration size, the filter regulator protects the performance of air-powered equipment by preventing solid and liquid contaminants from reaching the internal workings. The device’s transparent polycarbonate (PC) bowl provides 360° visibility around the filter, letting you see clearly when it needs to be emptied.
**Features & Benefits**
• Zinc alloy housing is corrosion-resistant to minimise the risk of component wear even in humid conditions
• Features a spitter-type filter drain that automatically removes condensate after a quick change in airflow, keeping the filter clear for consistent performance
• Bowl attaches with a simple screw-on motion for quick assembly and maintenance
**Applications**
• Aerospace industry
• Medical and pharmaceutical manufacturing
• Compressed air cleaning equipment
**How do I mount this pneumatic filter regulator?**
The regulator mounts with a compatible wall bracket (123-923) and is secured with 3mm screws.
