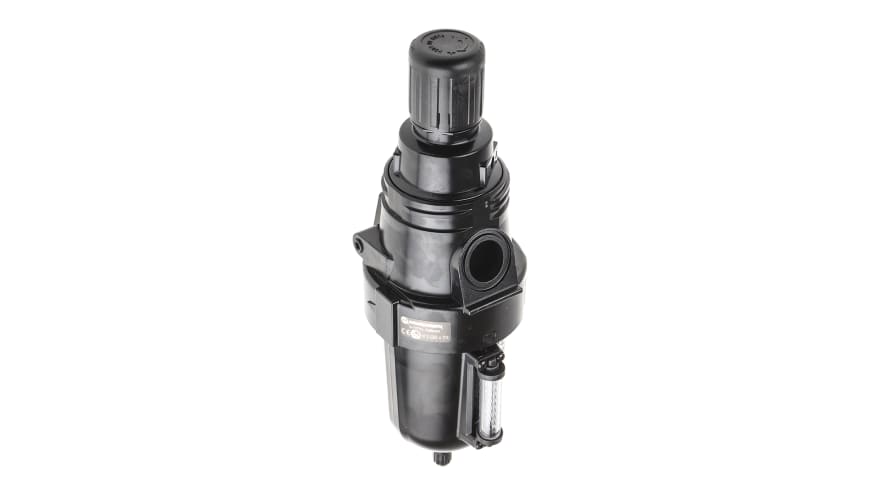

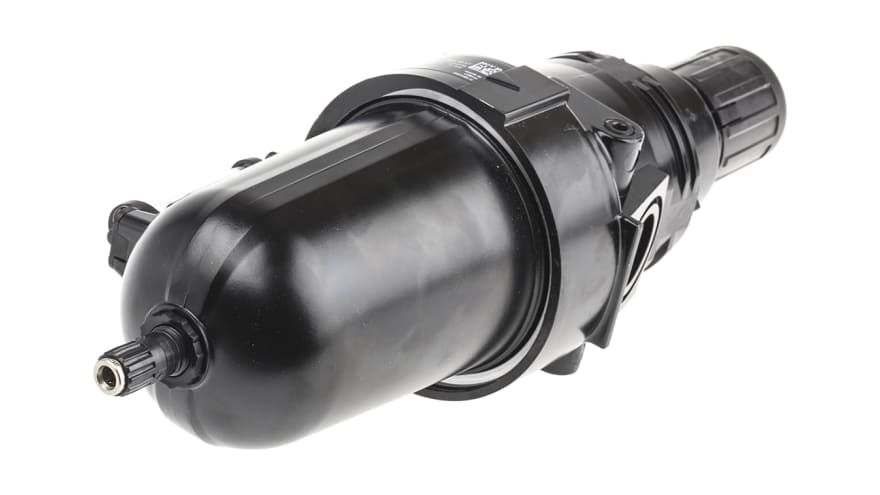

Norgren B68G Filter Regulator, 40μm, G 1 1/2, G 3/4, Automatic

Name: Norgren B68G Filter Regulator, 40μm, G 1 1/2, G 3/4, Automatic
Brand: NORGREN
SKU: B68G-NNK-AR3-RLN
Price: 18525.00 THB
Availability: InStock

รหัสสินค้า: B68G-NNK-AR3-RLN

Original price was: ฿23,157.00.Current price is: ฿18,525.00. รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**Filter/Regulator**
Combined filter and regulator in one, integral unit
Large filter element area provides minimum pressure drop
40μm sintered filter element
Aluminium bowl and body
Pyrex liquid level indicator
Auto drain
Weight 2.9kg

****
Regulator, Filter/Regulator

****
These high capacity units, with large valve and diaphragm, have excellent flow and regulation characteristics. The redesigned, upgraded products are fully interchangeable with existing Olympian® 15 series units. Each fits into a G 3/4 or G1 ported yoke assembly, ordered separately. In each case the body, bonnet and valve are in aluminium, the push-to-lock adjusting knob is in acetal resin and elastomers are synthetic rubber. Supplied with ’O’ rings (1in/1out).

Compare

Add to wishlist

รหัสสินค้า: B68G-NNK-AR3-RLN หมวดหมู่: Hydraulics and Pneumatics / ไฮดรอลิกส์และระบบลม

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Port Connection: G 1 1/2, G 3/4
Maximum Operating Pressure: 17 bar
Manufacturer Series: B68G
Drain Type: Automatic
Filtration Size: 40µm
Pressure Gauge Port: Rc 1/8
Pressure Gauge Port Thread Size: 1/8 in
Port Connection Thread Size: 1-1/2 in
Maximum Ambient Operating Temperature: +80°C
Minimum Operating Pressure: 0.3bar
Ambient Operating Temperature Range: -20 → +80°C
Minimum Ambient Operating Temperature: -20°C
Port Connection Thread Standard: G
