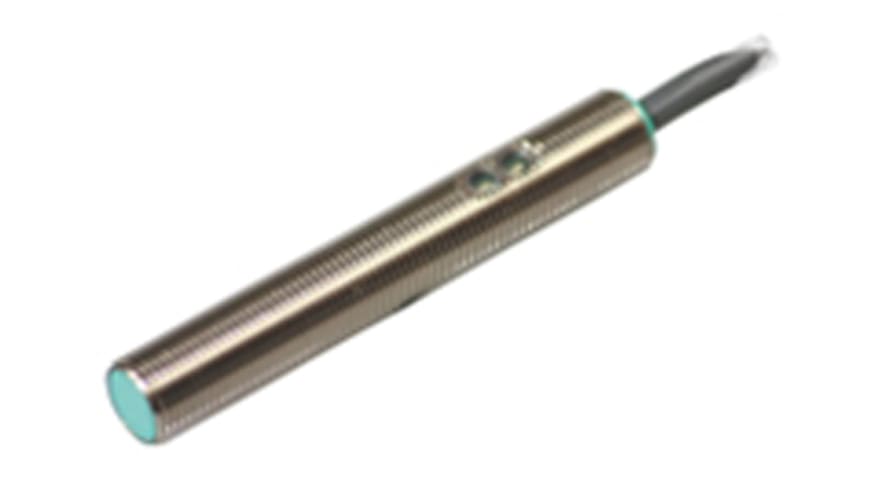

NBB4-12GM75-US, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, 20 → 250 V ac, 20 → 300

Name: NBB4-12GM75-US, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, 20 → 250 V ac, 20 → 300
Brand: Pepperl + Fuchs
SKU: NBB4-12GM75-US
Price: 7616.32 THB
Availability: OutOfStock

รหัสสินค้า: NBB4-12GM75-US

Original price was: ฿9,520.40.Current price is: ฿7,616.32. รวมภาษีมูลค่าเพิ่มแล้ว

โปรดติดต่อเราเพื่อสั่งซื้อ

สินค้าหมดแล้ว

รายละเอียดสินค้า / Product Details

**Extended Sensing Range**
These Pepperl + Fuchs inductive proximity sensors are cylindrical in design and are available with an extended sensing range of up to 30mm to suit a number of different applications.

**Features and benefits**
LED indication
Embeddable or flush installation
IP67
Supply voltage 10 to 30Vdc
Short circuit and reverse polarity protection
Pre-wired types have 2m PVC cable
Plug-in types have M12 type V1 connector
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

****
Pepperl + Fuchs

Compare

Add to wishlist

รหัสสินค้า: NBB4-12GM75-US หมวดหมู่: อุปกรณ์ควบคุมไฟฟ้าอุตสาหกรรมและPLC

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Sensor Technology: Inductive
Thread Size: M12 x 1
Body Style: Barrel
Detection Range: 4 mm
Terminal Type: Cable
Supply Voltage: 20 → 250 V ac, 20 → 300 V dc
IP Rating: IP67
Length: 75mm
Maximum DC Voltage: 300V
Maximum AC Voltage: 250V
Mounting Type: Flush
Switching Current: 200 mA
Maximum Operating Temperature: +70°C
Housing Material: Brass Nickel Plated
Maximum Switching Frequency: 30Hz
Shielding: Unshielded
Short Circuit Overload Protection: Yes
Reverse Polarity Protection: Yes
Minimum Operating Temperature: -25°C
