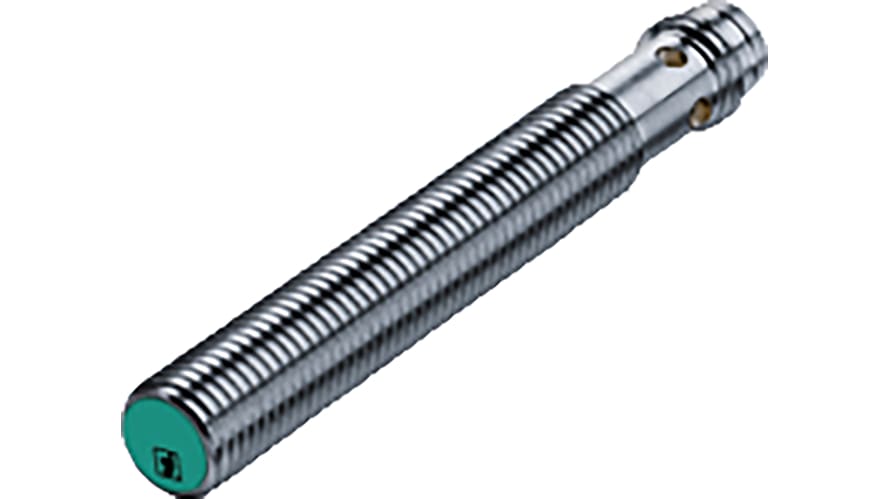

NEB4-8GM50-E2-V3, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M8 x 1, 4 mm Detection, PNP Output, 5 → 30 V dc, IP67

คุณสมบัติ / Specifications
Sensor Technology: Inductive
Thread Size: M8 x 1
Body Style: Barrel
Output Type: PNP
Detection Range: 4 mm
Terminal Type: 3-Pin M8 Connector
Supply Voltage: 5 → 30 V dc
IP Rating: IP67
Length: 60mm
Mounting Type: Flush
Switching Current: 200 mA
Maximum Operating Temperature: +70°C
Maximum Switching Frequency: 500Hz
Housing Material: Brass
Minimum Operating Temperature: -25°C
Short Circuit Overload Protection: Yes
Reverse Polarity Protection: Yes
Standards Met: CCC Certified, cCSAus Listed, CE Certified, cULus Listed, EN 60947-5-2, IEC 60947-5-2
