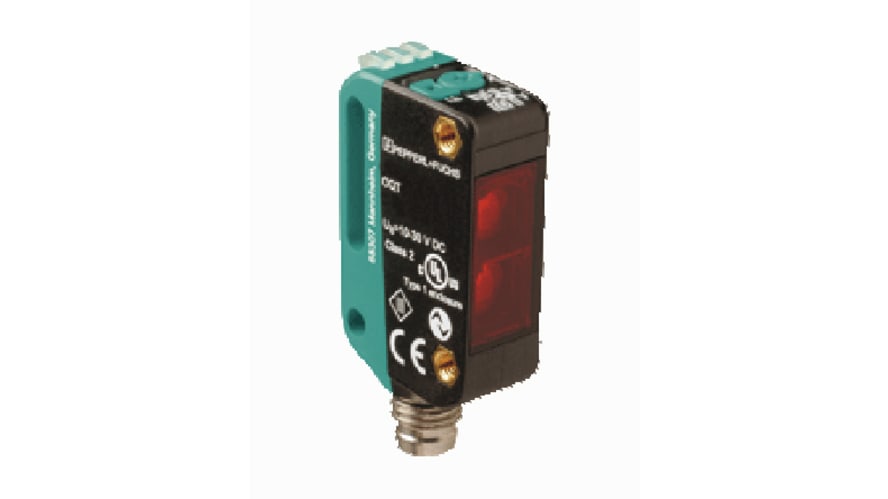

OQT150-R100-2EP-IO-V31, Pepperl + Fuchs Background Suppression Distance Sensor, Block Sensor, 5 mm → 150 mm Detection Range IO-LINK

Name: OQT150-R100-2EP-IO-V31, Pepperl + Fuchs Background Suppression Distance Sensor, Block Sensor, 5 mm → 150 mm Detection Range IO-LINK
Brand: Pepperl + Fuchs
SKU: OQT150-R100-2EP-IO-V31
Price: 6797.00 THB
Availability: OutOfStock

รหัสสินค้า: OQT150-R100-2EP-IO-V31

Original price was: ฿8,497.00.Current price is: ฿6,797.00. รวมภาษีมูลค่าเพิ่มแล้ว

โปรดติดต่อเราเพื่อสั่งซื้อ

สินค้าหมดแล้ว

รายละเอียดสินค้า / Product Details

**Pepperl and Fuchs – R100 Series IO-Link Photoelectric Sensors**
Pepperl + Fuchs R100 series photoelectric sensors combine state-of-the-art design with economy, simplicity, and innovative technologies. The R100 series includes the complete family of photoelectric sensing modes in a single housing design. Regardless of which sensing mode is required in the application, housing characteristics such as dimensions, wiring, and installation are identical throughout the series.
The integration of IO-Link in the R100 sensors enables communication down to sensor level, allowing sensor intelligence to be used to its full potential.
Long life
Sharp light spot
IO-Link
Indicator LEDs
Precise object detection
Compact housing design

Compare

Add to wishlist

รหัสสินค้า: OQT150-R100-2EP-IO-V31 หมวดหมู่: อุปกรณ์ควบคุมไฟฟ้าอุตสาหกรรมและPLC

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Sensor Style: Block
Detection Type: Background Suppression
Detection Range: 5 mm → 150 mm
Output Type: NPN/PNP
Electrical Connection: M8 4 Pin Connector
Communication Protocol: IO-LINK
Maximum DC Voltage: 30V
Terminal Type: 4 Pin Connector
Light Source: LED
IP Rating: IP67, IP69, IP69K
Maximum Current: 100 mA
Response Time: 2.3 ms
Interface: IO-Link
Mounting Type: Panel Mount
Minimum Operating Temperature: -40°C
Housing Material: PC
Series: OQT150
Maximum Operating Temperature: +60°C
Standards Met: CE, cULus, E 87056, EMC Directive 2004/108/EC, EN 60947-5-2:2007, EN 61131-9:2013, EN 62471:2008, IEC 60947-5-2:2007, IEC 61131-9:2013, UL 60947-5-2: 2014
