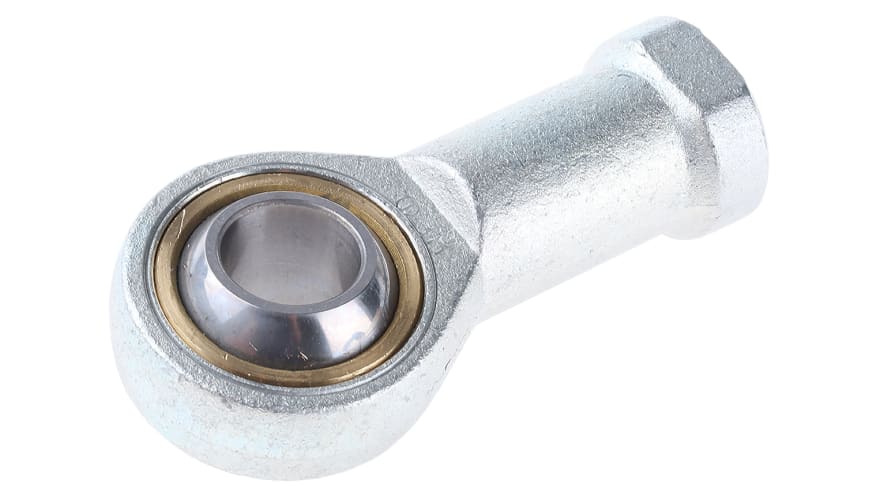

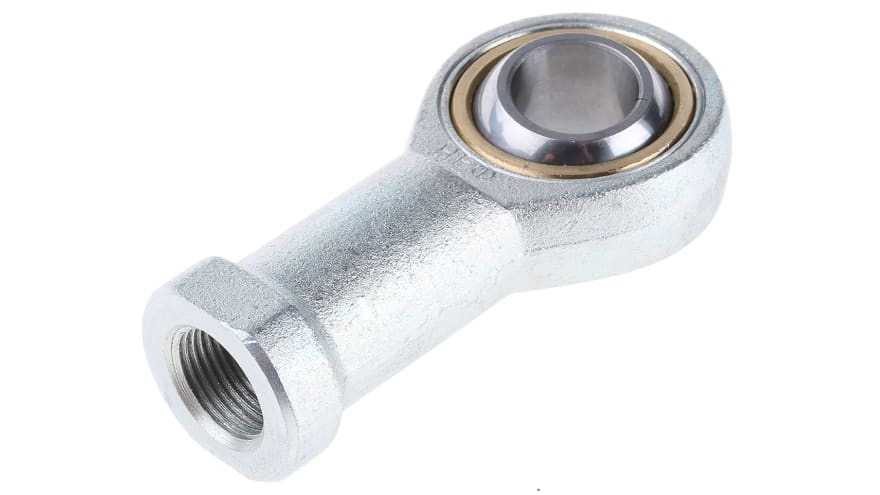

Norgren QM M20 x 1.5 Anodised Aluminium Rod End Bearing, 77mm Long, Metric Thread Standard, Female Connection Gender

รายละเอียดสินค้า / Product Details

**IMI Norgren Rod End Bearing, Female Connection Gender, 80mm Mounting Bore – QM Series – QM/8080/32**
Want a component that can handle all the twists and turns your system throws at it? This rod end bearing from IMI Norgren is just what you need. It’s used to support the complex movement of mechanical parts and components. You can partner it with pneumatic and hydraulic cylinders with a mounting bore of 80 or 100mm diameter (such as 164-7074). Thanks to a broad operating range between -20°C and +80°C, this is a safe option to reach for in settings where extreme temperatures are expected.

**Features & Benefits**
• Standard M20 thread makes installation a piece of cake
• Light weight of 0.67kg puts limited strain on your existing setup

**Applications**
• Robotic equipment
• Automotive suspension systems
• Aerospace engineering
• Conveyor belts

**What’s the benefit of the bearing’s spherical design?**
This design allows for flexible movement, so you can use it for linear, oscillating or rotary movements in your control system.

**How big is this end bearing?**
It has compact dimensions of 25 (H) x 104 (L) x 50mm (W) to fit comfortably in confined setups.
