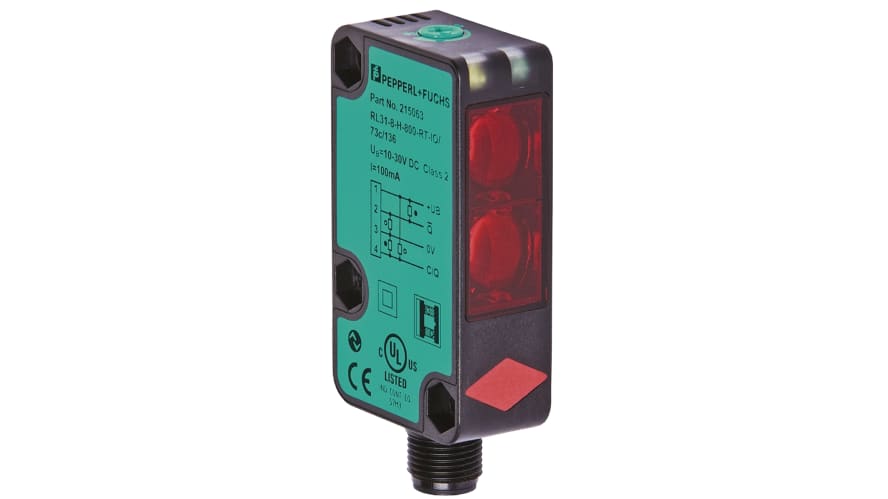

RL31-8-H-800-RT-IO/59/73c/136, Pepperl + Fuchs Diffuse Photoelectric Sensor, Block Sensor, 800 mm Detection Range IO-LINK

Name: RL31-8-H-800-RT-IO/59/73c/136, Pepperl + Fuchs Diffuse Photoelectric Sensor, Block Sensor, 800 mm Detection Range IO-LINK
Brand: Pepperl + Fuchs
SKU: RL31-8-H-800-RT-IO/59/73c/136
Availability: OutOfStock

รหัสสินค้า: RL31-8-H-800-RT-IO/59/73c/136

Original price was: ฿9,501.00.Current price is: ฿7,601.00. รวมภาษีมูลค่าเพิ่มแล้ว

โปรดติดต่อเราเพื่อสั่งซื้อ

สินค้าหมดแล้ว

รายละเอียดสินค้า / Product Details

**RL31 Diffuse Block Style DC Photoelectric Sensors**
The RL31 range of diffuse photoelectric sensors from Pepperl + Fuchs offers a compact sensor suitable for factory automation applications within industrial environments. Diffuse sensors work when an object moves within the sensing range by using light from the emitter which will strike the target object within range which will then be reflected directly into the receiver unit and activate the sensor. Diffuse sensors are used in part presence, error proofing, fill, product height and lid presence applications.
Operating voltage DC
Compact and stable housing
Protection class II
Highly visible LED
Powerful push-pull output

Compare

Add to wishlist

รหัสสินค้า: RL31-8-H-800-RT-IO/59/73c/136 หมวดหมู่: อุปกรณ์ควบคุมไฟฟ้าอุตสาหกรรมและPLC

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Sensor Style: Block
Detection Type: Diffuse
Detection Range: 800 mm
Output Type: PUSH/PULL
Electrical Connection: M12 4 Pin Connector
Communication Protocol: IO-LINK
Maximum DC Voltage: 30V
Light Source: LED
IP Rating: IP67
Maximum Current: 100 mA
Response Time: 2.5 ms
Interface: IO-Link
Housing Material: PC
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: +55°C
