คุณสมบัติ / Specifications
Supply Voltage: 24 V dc
Blower Type: Centrifugal
AC or DC Operation: DC
Air Flow: 61m³/h
Series: RL 65
Height: 93.5mm
Width: 97mm
Depth: 33mm
Dimensions: 93.5 x 97 x 33mm
Fan Speed: 4900rpm
Noise Level: 66dB
Bearing Type: Ball
Mounting Hole Spacing: 71 x 71mm
Commutation Type: Electronic
Direction of Curve: Forward
Horizontal Hole Spacing: 71mm
Vertical Hole Spacing: 71mm
Mounting Hole Diameter: 4.3mm
สินค้าในกลุ่มนี้ทั้งหมด

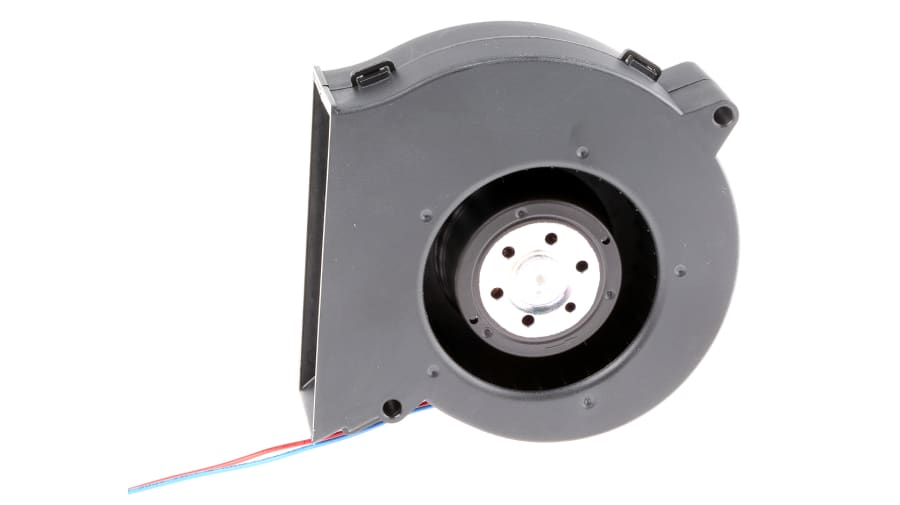

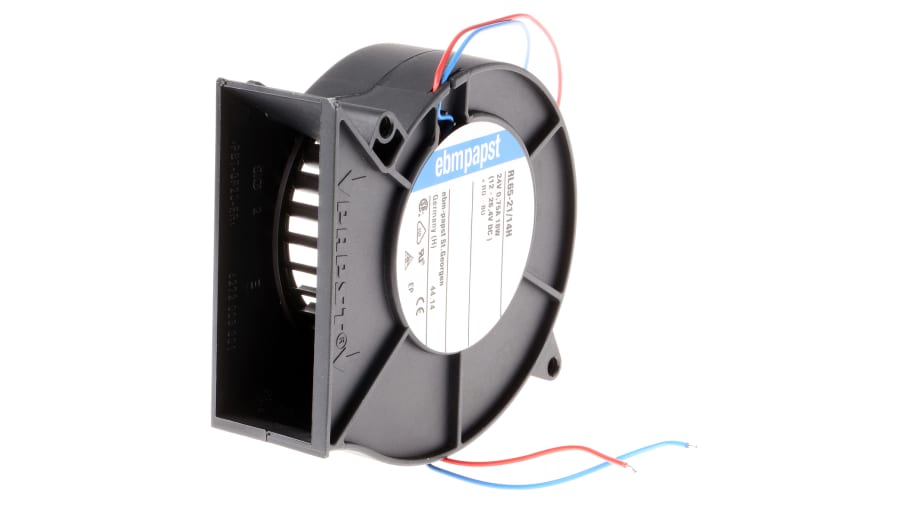

ebm-papst RL 65 Series Centrifugal Fan, 24 V dc, 61m³/h, DC Operation, 93.5 x 97 x 33mm
รหัสสินค้า: RL65-21/14H฿3,147.00 Original price was: ฿3,147.00.฿2,518.00Current price is: ฿2,518.00. รวมภาษีมูลค่าเพิ่มแล้ว
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details
**ebm-papst Centrifugal Fan**
The ebm-papst 24VDC radial blower is a DC centrifugal compact fan with speed signal, ball bearing and wire leaded power connection. The scroll housing is made up of fibreglass-reinforced plastic and the fibreglass-reinforced plastic is used for the impeller. The fan speed of 4900rpm and provides axial air intake. The centrifugal air exhaust out of the outlet direction of airflow (61m3/h) with single strands 26AWG, TR 64 leads with a forward-curved impeller. This DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
**Features and Benefits**
Electronically commutated external rotor motor
Fully integrated commutation electronics
Electronic protection against reverse polarity
fibreglass reinforced pbt plastic housing
fibreglass reinforced pa plastic impeller
Ball bearing construction
**Applications**
Central air conditioning units or building ventilation systems
Automobiles
Railways
Electronic products
Medical treatment
Households
Ventilation
Air conditioning
Refrigeration systems
