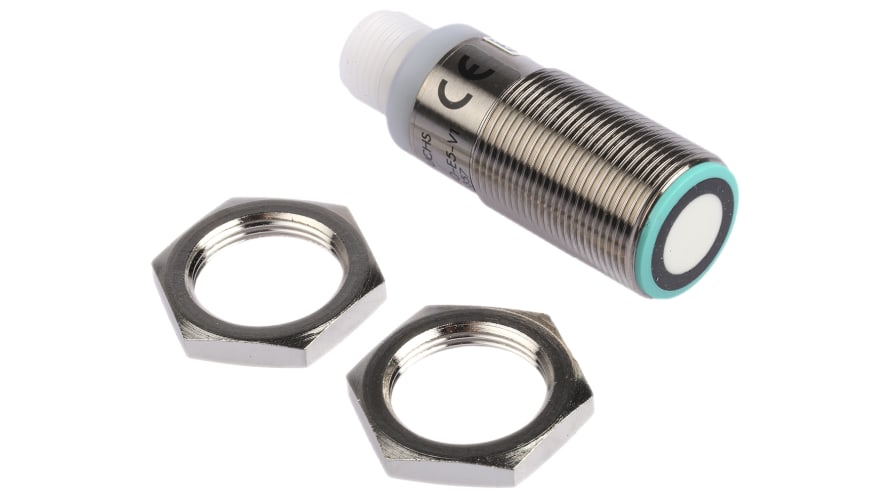

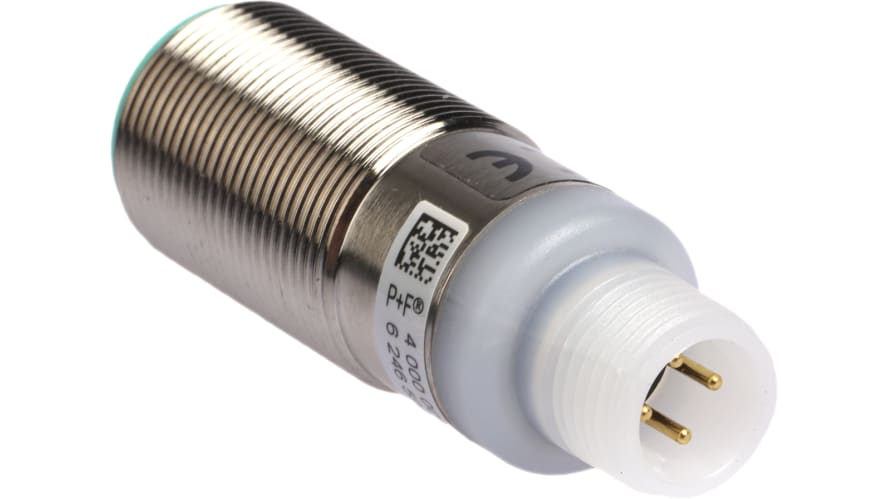

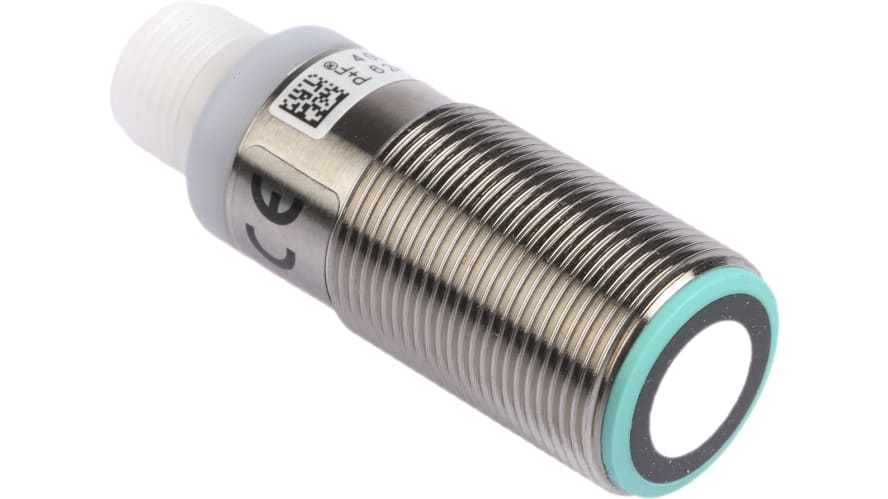

UB300-18GM40-E5-V1, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, M18 x 1, 30 → 300 mm Detection, PNP Output, 10

Name: UB300-18GM40-E5-V1, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, M18 x 1, 30 → 300 mm Detection, PNP Output, 10
Brand: Pepperl + Fuchs
SKU: UB300-18GM40-E5-V1
Price: 9817.00 THB
Availability: InStock

รหัสสินค้า: UB300-18GM40-E5-V1

Original price was: ฿12,271.00.Current price is: ฿9,817.00. รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**M18 Single & Dual Switch**
Nickel plated brass body
Switching current of 200mA and no load current of 50mA
Nickel plated brass body
Single switch version has 5 different settable output functions
UB500 single switch has synchronisation and deactivation options
Dual switch version has 3 different settable output functions
For mounting brackets see stock no.
280-6850

****
UB and UC Series Barrel Style Switched Output

****
IP65 protected
-25 to +70°C Operating temperature
Teach-In input
Temperature compensation
Short circuit/Overload protected
LED indicators
Supply voltage 10-30Vdc
N/O and N/C configurable output

Compare

Add to wishlist

รหัสสินค้า: UB300-18GM40-E5-V1 หมวดหมู่: อุปกรณ์ควบคุมไฟฟ้าอุตสาหกรรมและPLC

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Sensor Technology: Ultrasonic
Thread Size: M18 x 1
Body Style: Barrel
Output Type: PNP-NO/NC
Detection Range: 30 → 300 mm
Terminal Type: M12 – 4 Pin
Supply Voltage: 10 → 30 V dc
IP Rating: IP67
Length: 50.2mm
Switching Frequency: ≤13 Hz
Maximum DC Voltage: 30V
Switching Current: 200 mA
Housing Material: Nickel Plated Brass
Maximum Operating Temperature: +70°C
Minimum Operating Temperature: -25°C
Short Circuit Overload Protection: Yes
