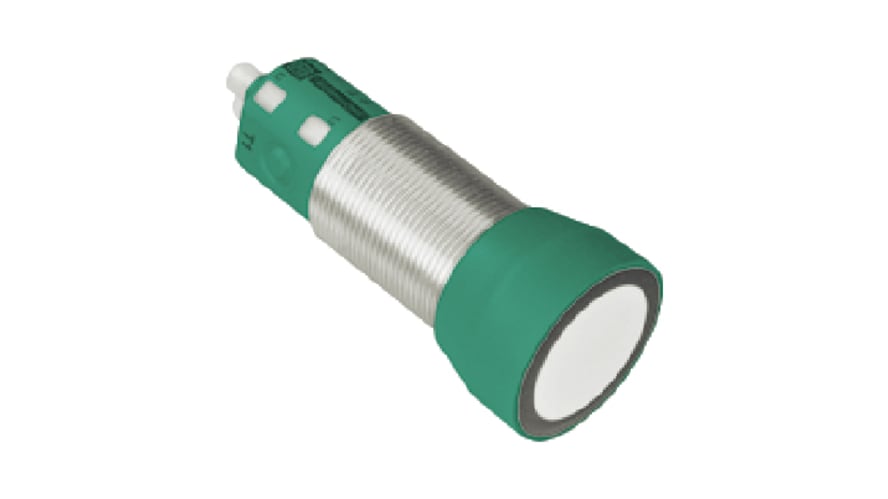

UC4000-30GM-2EP-IO-V15, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, 200 → 4000 mm Detection, NPN Output, 10 → 30 V

Name: UC4000-30GM-2EP-IO-V15, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, 200 → 4000 mm Detection, NPN Output, 10 → 30 V
Brand: Pepperl + Fuchs
SKU: UC4000-30GM-2EP-IO-V15
Price: 19520.00 THB
Availability: InStock

รหัสสินค้า: UC4000-30GM-2EP-IO-V15

Original price was: ฿24,400.00.Current price is: ฿19,520.00. รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**M30 Single & Dual Switch**
Pepperl and Fuchs M30 single and dual switches.
Stainless steel body
Adjustable switched outputs
Synchronisation feature
Hysteresis and window modes
Adjustable acoustic power and sensitivity
For detecting smooth substances solids, liquids or powders
Switching current of 200mA and no load current of 50mA
Compatible lead type M12 5-pin Plug-In

****
UB and UC Series Barrel Style Switched Output

****
IP65 protected
-25 to +70°C Operating temperature
Teach-In input
Temperature compensation
Short circuit/Overload protected
LED indicators
Supply voltage 10-30Vdc
N/O and N/C configurable output

Compare

Add to wishlist

รหัสสินค้า: UC4000-30GM-2EP-IO-V15 หมวดหมู่: อุปกรณ์ควบคุมไฟฟ้าอุตสาหกรรมและPLC

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Sensor Technology: Ultrasonic
Body Style: Barrel
Output Type: NPN
Detection Range: 200 → 4000 mm
Terminal Type: 5-Pin M12 Connector
Supply Voltage: 10 → 30 V dc
IP Rating: IP67
Communication Protocol: IO-LINK
Length: 86mm
Switching Frequency: ≤2 Hz
Maximum DC Voltage: 30V
Housing Material: Polyamide, Stainless Steel, TPU
Maximum Operating Temperature: +70°C
Reverse Polarity Protection: Yes
Standards Met: CCC, cCSAus Listed, CE, cULus Listed, EN, IEC, IO-Link
Short Circuit Overload Protection: Yes
Minimum Operating Temperature: -25°C
